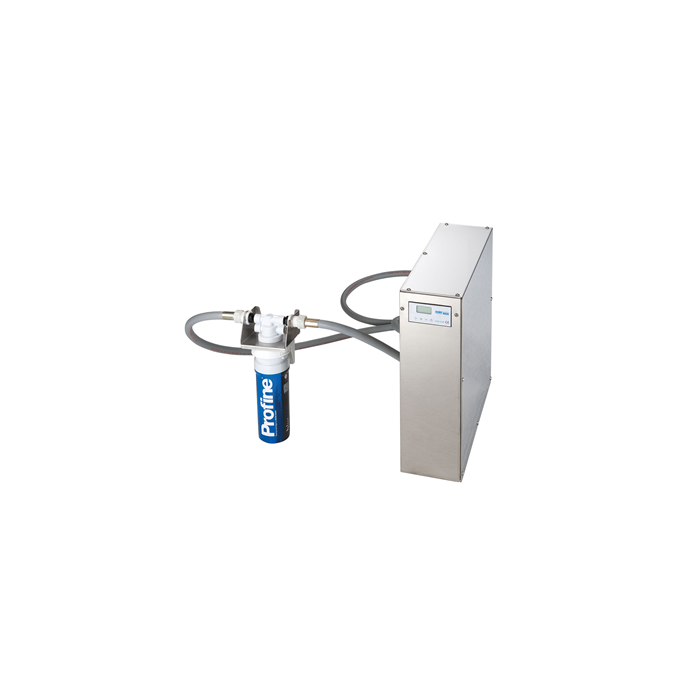

Electrolux External Reverse Osmosis Filter for Atmospheric dishwashers PNC 864388

Main Features

• The reverse osmosis filter treats the water before it feeds into the dishwasher. The filter is able to remove approximately 99% of minerals in the water thus guaranteeing clean results on the ware.

• The unit is a multi-step physical filter: a built-in prefiltering device (sediment filter and an active carbon filter) eliminates particles, chlorine and possible odors from the water; the final filtering level uses the "reverse osmosis" principle pushing high-pressure water through a semi-permeable membrane to remove more than 95% of salt and impurities.

• Flow rate of 120l/h at 15C.

• Equipped with manual by-pass allows in case of malfunctions to exclude the osmosis filter system for continuous function of the dishwasher.

• The unit has compact dimension and can be installed in horizontal or vertical position (with the cover oriented upwards) next to the dishwasher.

• Impurities and bacteria retained by the membrane are eliminated by self-cleaning system. Automatic membrane flushing occurs every 6 hours but it's possible to start the flushing manually.

• When used with hard water (feeding water hardness > 25dH/44fH or conductivity > 1200 S/cm), a water softener is recommended to reduc membrane damage and the need for descaling.

• Reverse osmosis filter requires cold water (min 5C, max 35C) and feeding water pressure between 1-4 bar.

• Electronic control with clear display shows not only Reverse osmosis filter data i.e. the residual conductivity value, the residual filter autonomy and operation hours but also alarm signals as lacks of pressure from network, filter exhaustion and water leakage.

• Optional accessory of four small casters facilitates cleaning and movement.
