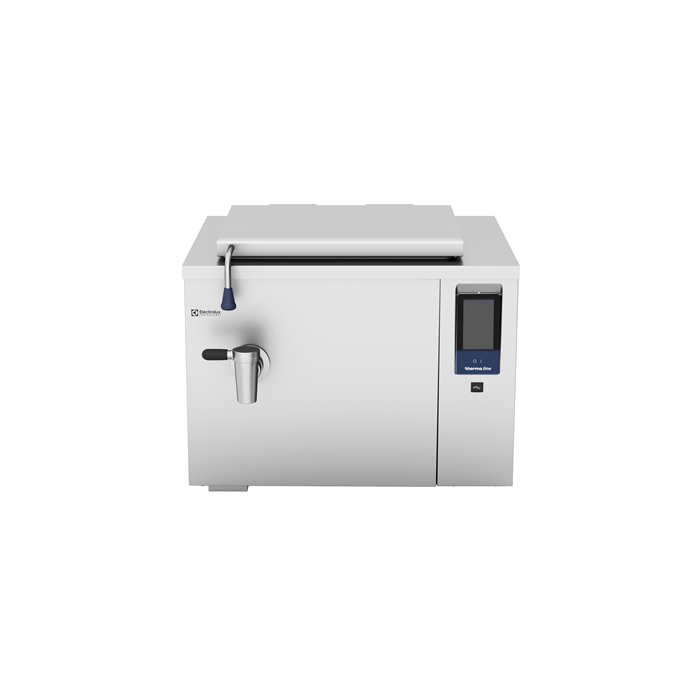

Electrolux Electric Rectangular Braising Pan, 110lt, Freestanding PNC 586740

In stock
SKU
586740

Main Features

  • Multifunctional cooking appliance used for roasting, pot-roasting, braising, simmering, boiling and steaming.

  • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory contact the Company for more details).

  • Square inner kettle allows working with stacked Gastronorm containers, which facilitate loading and unloading operations.

  • Easy to clean cooking surface due to large-radius edges and corners.

  • Thermoblock heating system for optimal temperature distribution and high temperature stability.

  • Pan bottom with two individually adjustable heating zones, each with a temperature sensor.

  • Large capacity food tap enables safe and effortless discharging of contents.

  • Discharge tap is very easy to disassemble and clean.

  • Temperature sensors provides efficient temperature control: the power is supplied as and when required to keep the set temperature value without exceeding it.

  • IPX6 water resistant.

  • Optimum heat distribution in the food provides best cooking results in terms of taste, colour and consistency and in terms of vitamin preserving.

  • Overnight cooking: saving electricity and time.

  • High-quality thermal insulation of the pan saves energy and keeps operating ambient temperature low.

  • Built in temperature sensor to precisely control the cooking process.

  • No overshooting of cooking temperatures, fast reaction.

  • USB connection to easily update the software, upload recipes and download HACCP data.

  • External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.

  • Multipurpose non-stick cooking surface in 18 mm thick compound: 3 mm shot-blasted 1.4404 (AISI 316L) stainless steel surface, seamlessly welded to the mild steel bottom.

  • Entire pan tub made in 1.4301 (AISI 304) stainless steel, single-piece deep drawn.

  • Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.

  • 15 mm thick heating layer concealed below the entire pan bottom, to provide high thermal diffusion and heat storage properties.

  • 2" diameter discharge tap for rapid emptying of the well.

  • Heatproof handle with non-slip surface.

  • Front-mounted inclined led TOUCH control panel with recessed deep drawn casing, features self-explanatory display functions which guide operator throughout the cooking process: simultaneous display of actual and set temperature as well as set cooking time and remaining cooking time; real time clock; SOFT control for gentle heating up for delicate food; 9 power simmering levels from gentle to heavy boiling; timer for deferred start; error display for quick trouble-shooting.

  • Possibility to store recipes in single or multiphase cooking process, with different temperature settings.

  • Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.

  • "Boiling" or "Braising" mode functions.

  • Can be prearranged for energy optimisation or external surveillance systems (optional).

  • 98% recyclable by weight; packaging material free of toxic substances.


Electric Braising Pan 110lt (s), rectangular, freestanding

The Electrolux Electric Rectangular Braising Pan, 110lt, Freestanding PNC 586740 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50/60 Hz
  • Auxiliary: 0 kW
  • Total Watts: 15.5 kW
Installation:
  • Type of installation: FS on concrete base;FS on feet;On base;Standing against wall
Key Information:
  • Configuration: Rectangular;Fixed;FreeStanding
  • Working Temperature MIN: 50 C
  • Working Temperature MAX: 250 C
  • Vessel (rectangle) width: 680 mm
  • Vessel (rectangle) height: 340 mm
  • Vessel (rectangle) depth: 550 mm
  • External dimensions, Width: 1000 mm
  • External dimensions, Height: 800 mm
  • External dimensions, Depth: 900 mm
  • Net weight: 140 kg
  • Net vessel useful capacity: 110 lt
  • Double jacketed lid: ?
  • Heating type: Direct

The Electrolux Electric Rectangular Braising Pan, 110lt, Freestanding PNC 586740 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
