CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
Certified safety CE requirements.
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Preservation performances and temperature uniformity within the cell guaranteed at 5-HEAVY DUTY (40°C) working conditions according to EN16825:2016 test protocol.
Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.
Large digital white-digit display with humidity selection button (3 preset level), internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Equipped with Optiflow forced air circulation system for rapid cooling and temperature distribution within the cell.
Tropicalized unit (43°C ambient temperature).
Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Frost Watch Control starts automatically the defrosting process only when needed and ends once ice is melted, improving energy efficiency results.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Fully removable cooling unit to facilitate maintenance.
Frontal and easy access to all components in the cooling unit.
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Anti-tilt runners accept GN 1/1 containers.
Self closing stainless steel doors (< 90°).
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Hot gas automatic evaporation of defrost water.
Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
External bottom panel in stainless steel.
External back panel in galvanized steel.
Interior base with rounded corners, pressed from a single sheet.
Worktop in AISI 304 Stainless steel with a 50 mm profile.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
1/3 drawers are suitable for basins up to 100mm high.
Internal dimension of the drawers.
models with 2 1/2 drawers: 1st drawer (top drawer) 203x302x521 / 2nd drawer 223x302x521 (HxWxD) models with 3 1/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd and 3rd drawers 118x302x521 (HxWxD) models with 1/3+2/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd drawer 333x302x521 (HxWxD)
Drawers with frame only.
If needed, working top can be removed for easier handling during installation (in case of narrow doors).
Anti-drip profile on stainless steel worktop edge.
Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.
Built-in refrigeration unit.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Fault code display.

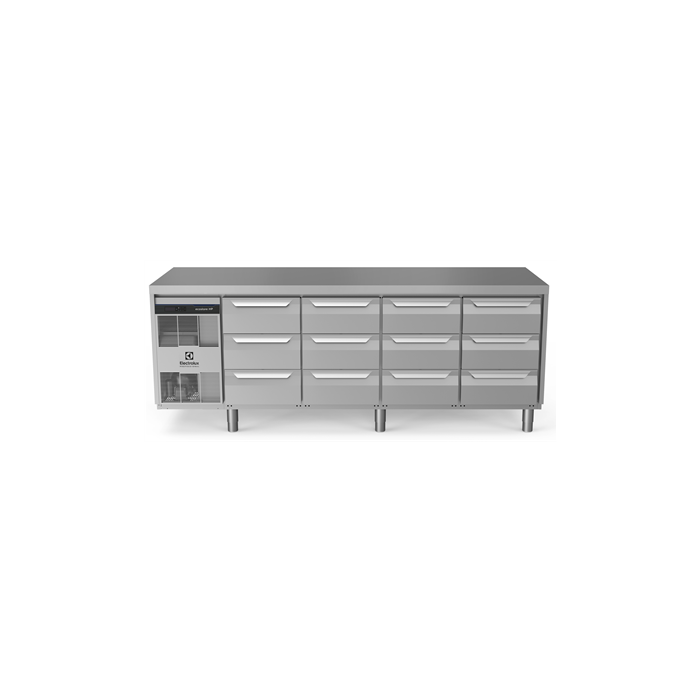

The Electrolux ecostore HP Premium Refrigerated Counter - 590lt, 12 Drawers PNC 710160 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.
The Electrolux ecostore HP Premium Refrigerated Counter - 590lt, 12 Drawers PNC 710160 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
