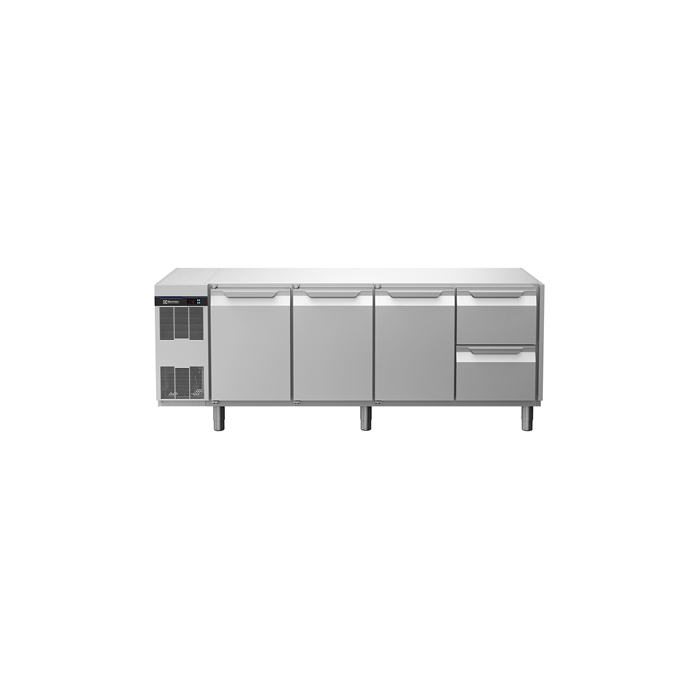

Electrolux ecostore HP Concept Refrigerated Counter 3 Doors and 2½ Drawers, no top PNC 710341

In stock
SKU
710341

Main Features

  • Tropicalized unit (43°C ambient temperature).

  • Certified safety CE requirements.

  • Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.

  • Combination of doors and drawers to suit any configuration need, with the possibility to change the configuration on site.

  • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).

  • Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.

  • Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).

  • 0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.

  • Frontal and easy access to all components in the cooling unit.

  • Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.

  • Anti-tilt runners accept GN 1/1 containers.

  • Self closing stainless steel doors (< 90°).

  • Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.

  • Hot gas automatic evaporation of defrost water.

  • Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.

  • External bottom panel in stainless steel.

  • External back panel in galvanized steel.

  • Digital control panel.

  • Forced air circulation for rapid cooling and an even temperature distribution.

  • Refrigerated compartment designed to accept GN 1/1 containers.

  • Automatic evaporation of defrost water.

  • CFC and HCFC free (ecological refrigerant type: R134a, - gas in foam: cyclopenthane).

  • Interior base with rounded corners, pressed from a single sheet.

  • 4 compartments with 4 doors.

  • Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.

  • Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.

  • Excellent space optimisation thanks to the compact dimensions.

  • Extractable cooling unit to facilitate maintenance.

  • Internal dimension of the drawers.
    models with 2 1/2 drawers: 1st drawer (top drawer) 203x302x521 / 2nd drawer 223x302x521 (HxWxD) models with 3 1/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd and 3rd drawers 118x302x521 (HxWxD) models with 1/3+2/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd drawer 333x302x521 (HxWxD)

  • Anti-drip profile on stainless steel worktop edge.

  • Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.

  • Built-in refrigeration unit.

  • Developed and produced in ISO 9001 and ISO 14001 certified factory.

  • Fault code display.

  • Access to all components from the front.

  • Mounted on 150 mm adjustable feet.

  • Rounded internal corners for ease of cleaning.

  • Mounted on Stainless steel legs to give 150 mm clearance for ease of cleaning the floor.

  • 304 AISI stainless steel internal and external doors, front and side panels. Evaporator in aluminium.

  • Pre-arranged for drain-pipe.

  • High-density expanded polyurethane foam 50 mm in thickness with cyclopenthane injection.


3-door and 2x1/2 drawer Refrigerated Counter, -2+10°C, AISI 304, without WorkTop

The Electrolux ecostore HP Concept Refrigerated Counter 3 Doors and 2½ Drawers, no top PNC 710341 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 220-240 V/1 ph/50 Hz
  • Electrical power max.: 0.29 kW
Product Information (EU Regulation 2015/1094)
  • Energy Class: C
  • Yearly and daily energy consumption: 1000kWh/year - 3kWkWh/24h
  • Climate class: Normal duty (cl.4)
  • Energy Efficiency Index (EEI): 37,86
Key Information:
  • Gross capacity: 590 lt
  • Net Volume: 333.200012207031 lt
  • N° of doors:
  • Door hinges:
  • External dimensions, Width: 2149 mm
  • External dimensions, Height: 850 mm
  • External dimensions, Depth with Doors Open: 1110 mm
  • Internal Dimensions (depth): 560 mm
  • Internal Dimensions (height): 550 mm
  • Internal Dimensions (width): 1706 mm
  • Net weight: 132 kg
  • Noise level: 48 dBA
  • N° of drawers:
  • Built-in Compressor and Refrigeration Unit
Refrigeration Data
  • Control type: Digital
  • Compressor power: 0.25 hp
  • Refrigerant type: R134a
  • Refrigeration power: 358 W
  • Refrigeration power at evaporation temperature: 0 °C
  • Refrigerant weight: 120 g
  • Min/Max internal humidity: 40/85
  • Operating temperature min.: -2 °C
  • Operating temperature max.: 10 °C
  • Operating mode: Ventilated
  • N° defrost in 24 hrs:

The Electrolux ecostore HP Concept Refrigerated Counter 3 Doors and 2½ Drawers, no top PNC 710341 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.
