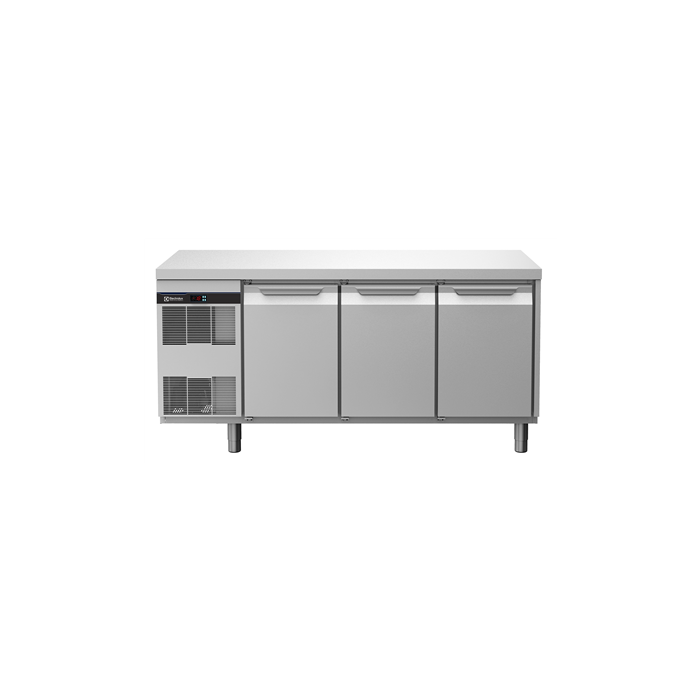

Electrolux ecostore HP Concept Freezer Counter - 3 Door PNC 710224

Main Features

• Anti-tilt runners accept GN 1/1 containers.

• Adjustable temperature range from -15 °C to -22 °C to suit meat, fish and dairy storage requirements.

• Self closing stainless steel doors (< 90°).

• Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.

• Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.

• Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.

• Tropicalized unit (43°C ambient temperature).

• 0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.

• Hot gas automatic evaporation of defrost water.

• Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).

• Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.

• Frontal and easy access to all components in the cooling unit.

• Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.

• External bottom panel in stainless steel.

• External back panel in galvanized steel.

• Certified safety CE requirements.

• Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.

• Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).

• Freezer compartment designed to accept GN1/1 containers.

• Combination of doors and drawers to suit varying needs, with the possibility to change the configuration on site.

• Digital control panel with temperature display.

• Forced air circulation for rapid cooling and an even temperature distribution.

• CFC and HCFC free (ecological refrigerant type: R404a, gas in foam: cyclopenthane).

• Developed and produced in ISO 9001 and ISO 14001 certified factory.

• Fault code display.

• Interior base with rounded corners, pressed from a single sheet.

• Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.

• Worktop in AISI 304 Stainless steel with a 50 mm profile.

• Pre-arranged for drain-pipe.

• Built-in refrigeration unit.

• Anti-drip profile on stainless steel worktop edge.

• 3 compartments with 3 doors.

• If needed, working top can be removed for easier handling during installation (in case of narrow doors).

• Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.

• Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.

• Excellent space optimisation thanks to the compact dimensions.

• Extractable cooling unit to facilitate maintenance.

• Built-in compressor to suit operating conditions.

• Full stainless steel construction. Internal structure and worktop in AISI 304 Stainless steel.

• Rounded internal corners for ease of cleaning.

• Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.

• Access to all components from the front.
