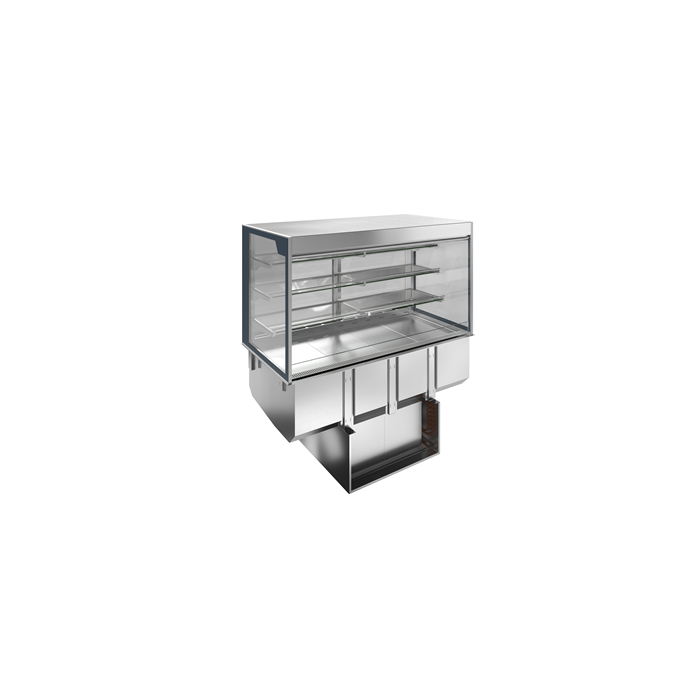

Electrolux Drop-in refrigerated well with refrigerated display, squared, medium service - 4 hours - 4GN PNC 341062

In stock
SKU
341062

Main Features

  • Bottom part of well is removable for an easier access to the evaporator.

  • Suitable for GN 1/1 containers with a maximum height of 150 mm.

  • Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.

  • CB and CE certifed by a third party notified body.

  • Designed to be positioned in flush installation providing improved cleanability and suitable for modern design installations.

  • Precise temperature control and setting at 0,1°C .

  • As standard the product comes with digitally controlled thermostat which is in line of HACCP norms and provides visual alarm as a warning of the increasing or decreasing temperatures.

  • Food introduced at the correct temperature maintains its core temperature according to Afnor Standards.

  • Automatic defrosting guarantees evaporators clearance and efficient well cooling.

  • Remote version is available.

  • Available drop-in dimensions: 2, 3, 4, 5 GN.

  • Well equipped with adjustable bottom that can be set to 5 positions for each GN 1/1 section, independently one from the other to display different items with different heights.

  • Front grids and well bottom panels can be removed without the need of any tool for fast and effective cleaning.

  • Well can be cleaned with a hose (after removing easily the fans).

  • Designed to serve: plates on the shelves and food in GN containers or food on plates/packages or bottles and cans thanks to adjustable bottom well.

  • The temperature uniformity is guaranteed by powerfull fans and high surface evaporator and air conveyours placed at the back of the shelves.

  • The display is illuminated by inside LED light under each glass shelf that emphasizes the cold food colors.

  • Includes three adjustable 8 mm thick tempered glass shelves that can be installed horizontally or inclined to better display dishes.

  • Short sides, back sliding doors and the top are in double glazed low emission glass (18 mm thick) to improve insulation avoiding formation of the condensation and reducing energy consumption.

  • Equipped with self lifting curtain to reduce energy dispersion when the unit is not in use.

  • Equipped with two sliding doors on the operator side with hold function allowing easy fill-up auto close function in order to ensure the doors always remain closed when not in use.

  • The air circulation has been studied in order to guarantee temperature uniformity in every and each section of the well and shelves.

  • Designed for extra increased visibility on the shelves for charming food display.

  • Closed on customer side or flaps on customer side options are available.

  • Well bottom is inclined to facilitate water drainage.

  • Well in 304 AISI stainless steel with rounded corners to facilitate cleaning operations. The well is also equipped with a drain hole.

  • Electronic control with temperature display.

  • High-density expanded polyurethane foam with cyclopenthane guarantees excellent well insulation to reduce energy dispersion.

  • IPx2 water protection.


Drop-in refrigerated well with refrigerated display, squared, medium service - 4 hours - (4 GN container capacity)

The Electrolux Drop-in refrigerated well with refrigerated display, squared, medium service - 4 hours - 4GN PNC 341062 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 220-240 V/1N ph/50 Hz
  • Electrical power max.: 1.12 kW
Key Information:
  • External dimensions, Width: 1450 mm
  • External dimensions, Height: 1510 mm
  • External dimensions, Depth: 750 mm
  • Net weight: 203 kg
  • Shipping weight: 233.7 kg
  • Shipping height: 1630 mm
  • Shipping width: 1490 mm
  • Shipping depth: 790 mm
  • Shipping volume: 1.92 m³
  • Set temperature: +4 / +8 °C
  • Noise level: 61 dBA
Water:
  • Water drain outlet size: 1"
  • Drain line size: 1"
Refrigeration Data
  • Refrigerant type: R290

The Electrolux Drop-in refrigerated well with refrigerated display, squared, medium service - 4 hours - 4GN PNC 341062 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.
