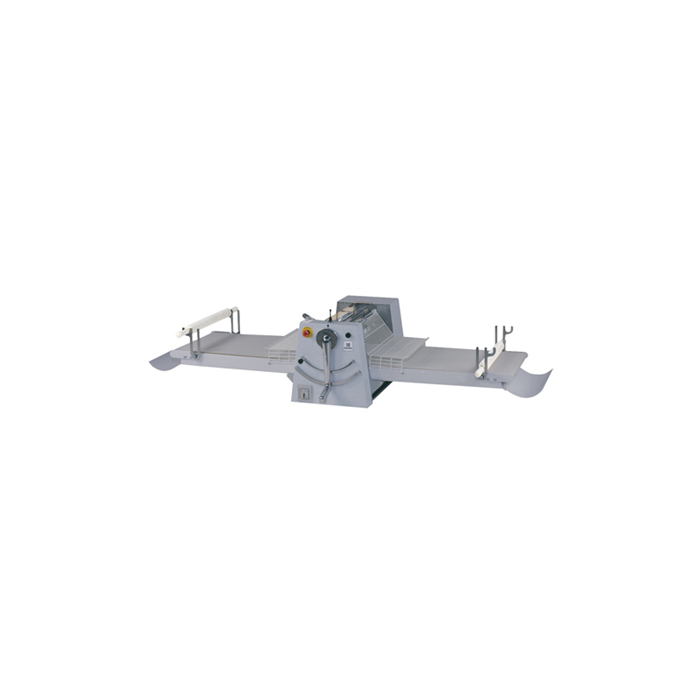

Electrolux Dough Sheeter, table standing belt - 500 mm PNC 616038

In stock
SKU
616038

Main Features

  • Belt dough sheeter for large productions.

  • Working width of 500 mm and belt 800 mm in length.

  • Rolling direction may be inverted by moving a joystick.

  • Ergonomic controls situated very close together and designed to suit natural movements.

  • Flour container fixed on the top of the machine.

  • Safety grids hinged to the structure, equipped with a safety micro-switch against injury.

  • Motor stops if gratings are raised to a dangerous level.

  • Emergency stop button with lock and manual re-start to ensure cylinder halt for added operator safety.

  • General electrical protection by fuses.

  • Motor protected by a circuit breaker.

  • Remote foot pedal to change rolling direction, available as optional accessory.

  • Designed for table top installations.

  • Single speed.

  • Belt entry feeding speed of 12.2 m/min and exit feeding speed of 22.5 m/min.

  • 60 mm diameter cylinders may be regulated for sheets ranging from 0,1 to 34 mm in thickness.

  • Upper and lower roller scrapers easily removable for cleaning

  • Slides can be raised to save space and the belts can be removed for washing.

  • Chromium plated steel rollers.


Table standing belt Dough Sheeter with tilting tables, working width 500 mm. Belt length 800 mm. Removable scrapers. 1 speed

The Electrolux Dough Sheeter, table standing belt - 500 mm PNC 616038 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 230 V/1 ph/50 Hz
  • Total Watts: 0.55 kW
Key Information:
  • External dimensions, Width: 2050 mm
  • External dimensions, Height: 660 mm
  • External dimensions, Depth: 880 mm
  • Net weight (kg): 120

The Electrolux Dough Sheeter, table standing belt - 500 mm PNC 616038 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
