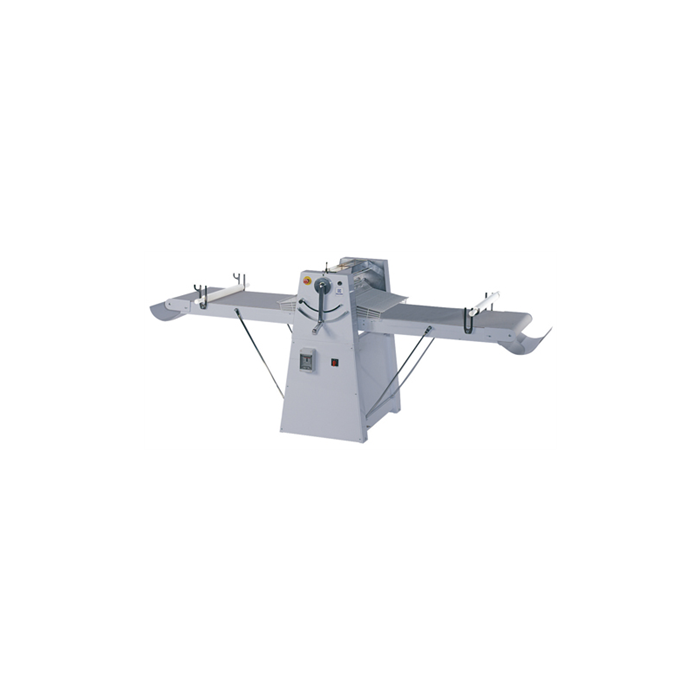

Electrolux Dough Sheeter, floor standing belt, Variable Speed - 500 mm PNC 601129

Main Features

• Belt dough sheeter for large productions.

• Working width of 500 mm and belt 1000 mm in length.

• Rolling direction may be inverted by moving a joystick.

• Ergonomic controls situated very close together and designed to suit natural movements.

• Flour container fixed on the top of the machine.

• Safety grids hinged to the structure, equipped with a safety micro-switch against injury.

• Motor stops if gratings are raised to a dangerous level.

• Emergency stop button with lock and manual re-start to ensure cylinder halt for added operator safety.

• General electrical protection by fuses.

• Motor protected by a circuit breaker.

• Remote foot pedal to change rolling direction, available as optional accessory.

• Floor standing belt dough sheeter mounted on wheels.

• Variable speed.

• Belt entry feeding speed between 0 and 31 m/min and exit feeding speed between 0 and 52 m/min.

• 60 mm diameter cylinders may be regulated for sheets ranging from 0,1 to 34 mm in thickness.

• Upper and lower roller scrapers easily removable for cleaning

• Slides can be raised to save space and the belts can be removed for washing.

• Chromium plated steel rollers.

Floor standing belt Dough Sheeter with tilting tables, working width 500 mm. Belt length 1000 mm. Removable scrapers. Variable speed. Fitting with croissant module
