Electrolux Dishwasher Basket Conveyor with Long Rollers 2300mm PNC 863035

In stock
SKU
863035

Main Features

  • The table can be used in loading and/or unloading sides.

  • Suitable to install either a single unit with dishwasher or combined with other tables.

  • Manual rack movement with long rollers.

  • The table is suitable for both rack type and hood type dishwasher. Rack type dishwasher can be connected directly to the table, while there are optional accessories to adapt the table with hood type dishwasher.

  • The long roller conveyor is available in 600mm and from 1100mm up to 2600mm with 100mm-step length.

  • Conveyors supplied as knockdown and easy to assemble.

  • "Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.

  • Drain can be turned 360.

  • Improved end limit switch for easier cleaning and higher reliability.

  • Designed to transport 500x500 mm dishwashing baskets.

  • Conveyors optionally equipped with end-limit switch, end plate, guides for racks, and undershelves.

  • Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.

  • Thick welded flanges for sturdy connection between the units.

  • Two legs included.

  • Self-bearing undershelf eliminates the need for additional frames.

  • AISI 304 1,2mm stainless steel basin.

  • 40x40mm stainless steel tubular and square legs.

  • Sloping bottom of the table grants a smooth and rapid drainage.

  • All surfaces smooth with polished finish.

  • Plastic rollers easy to remove for cleaning.

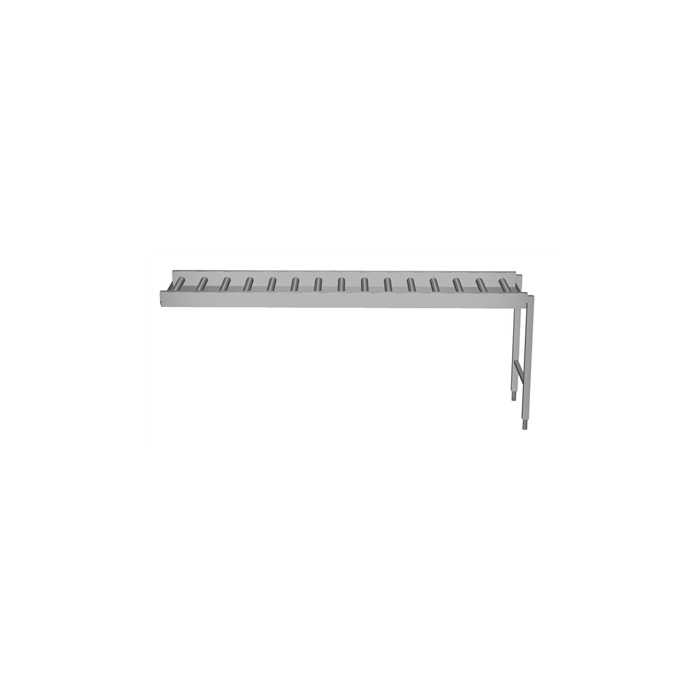

Conveyor, long rollers, 2300 mm

The Electrolux Conveyor, long rollers PNC 863035 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Key Information:
  • External dimensions, Width: 2300 mm
  • External dimensions, Height: 910 mm
  • External dimensions, Depth: 620 mm
  • Net weight: 30 kg
  • Height adjustment: 50/50 mm
  • Basin material: Stainless Steel AISI 304 - EN 1.4301
  • Type of rollers: Long

The Electrolux Conveyor, long rollers PNC 863035 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
