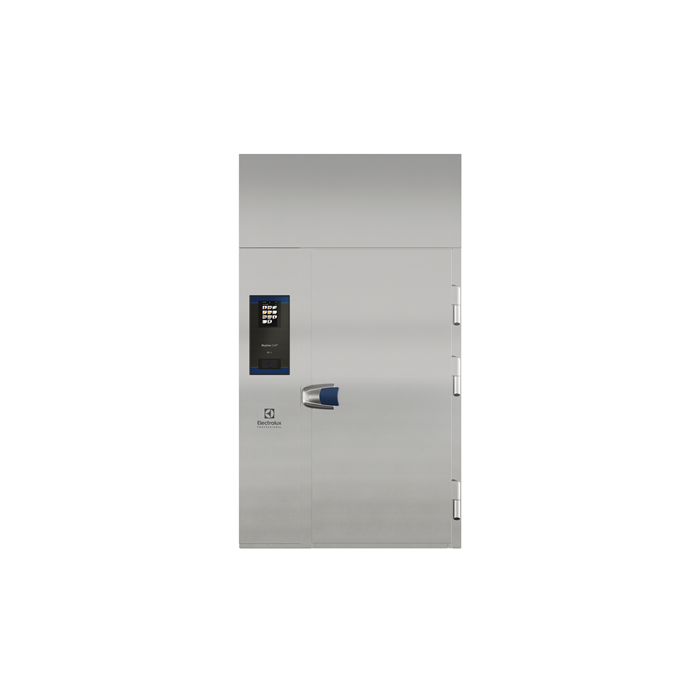

Electrolux Blast Chiller-Freezer 2x20GN1/1 200/170 kg, Remote, Roll-in, diassembled PNC 727751

£22,705.20 £18,921.00
In stock
SKU
727751

Main Features

  • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory contact the Company for more details).

  • High resolution full touch screen interface (translated in more than 30 languages) - color-blind friendly panel.

  • Blast Chilling cycle: 200 kg from +90C up to + 3C in less than 90 minutes.

  • Blast Freezing cycle: 170 kg from 90C up to -18C in less than four hours.

  • Chilling cycle (+10C to -41C) with automatic preset cycles:
    - Soft chilling (air temperature 0C), ideal for delicate food and small portions.
    - Hard chilling (air temperature -20C), ideal for solid food and whole pieces.

  • X-Freeze cycle (+10C to -41C): ideal for blast freezing all kinds of food (raw, half or fully cooked).

  • Lite-Hot cycle (+40C to -18C): ideal for soft heating preparations.

  • Holding at +3 C for chilling or -22 C for freezing, automatically activated at the end of each cycle, to save energy and maintain the target temperature (manual activation is also possible).

  • Turbo cooling: chiller works continuously at the desired temperature; ideal for continuous production.

  • Automatic mode including 10 food families (meat, poultry, fish, sauces and soup, vegetables, pasta/rice, bread, savory and sweet bakery, dessert, beverage fast cooling) with 100+ different pre-installed variants. Through Automatic Sensing Phase the blast chiller optimizes the chilling process according to size, quantity and type of food loaded to achieve the selected result. Real time overview of the chilling parameters. Possibility to personalize and save up to 70 variants per family.

  • Cycles+:
    - Cruise Chilling (Patented EP1716769B1 and related family) automatically sets the parameters for the quickest and best chilling (it works by probe)
    - Fast Thawing
    - Sushi&Sashimi (anisakis-free food)
    - Sous-vide chilling
    - Ice Cream

  • Programs mode: a maximum of 1000 programs can be stored in the blast chiller's memory, to recreate the exact same high standard at any time. The programs can be grouped in 16 different categories to better organize the menu. 16-step chilling programs also available.

  • MultiTimer function to manage up to 20 different chilling cycles at the same time, improving flexibility and ensuring excellent results. Can be saved up to 200 MultiTimer programs.

  • OptiFlow air distribution system to achieve maximum performance in chilling/heating eveness and temperature control thanks to a special design of the chamber combined with high precision variable speed fan.

  • 3-point multi sensor core temperature probe for high precision and food safety.

  • 6-point multi sensor core temperature probe for maximum precision and food safety (optional accessory).

  • Pictures upload for full customization of cycles.

  • Customizable pre-cooling function.

  • Remaining time estimation for probe-driven cycles based on artificial intelligence techniques (ARTE 2.0 Patented US7971450B2 and related family) for an easier planning of the activities.

  • Automatic and manual defrosting and drying.

  • Make-it-mine feature to allow full personalization or locking of the user interface.

  • SkyHub lets the user group the favorite functions in the homepage for immediate access.

  • With SkyDuo the Oven and the Blast Chiller are connected to each other and communicate in order to guide the user through the cook&chill process optimizing time and efficiency (SkyDuo Kit available as optional accessory).

  • MyPlanner works as an agenda where the user can plan the daily work and receive personalized alerts for each task.

  • USB port to download HACCP data, share chilling programs and configurations.

  • Connectivity ready for real time access to connected appliances from remote and HACCP monitoring (requires optional accessory).

  • Trainings and guidances supporting materials easily accessible by scanning QR-Code with any mobile device.

  • Automatic consumption visualization at the end of the cycle.

  • Performance guaranteed at ambient temperatures of +43C (Climatic class 5).

  • Human centered design with 4-star certification for ergonomics and usability.

  • Remote refrigeration unit (optional accessory).

  • Environmentally friendly: R452a as refrigerant gas.

  • Solenoid valve to automatically manage the gas pressure in the thermodynamic circuit.

  • Main components in 304 AISI stainless steel.

  • Evaporator with antirust protection.

  • Motors and fan waterproof protected IP23.

  • Seamless hygienic internal chamber with all rounded corners for easy cleaning.

  • Removable magnetic gasket door with hygienic design.

  • Ventilator swinging hinged panel for access to the evaporator for cleaning.

  • Automatic heated door frame.


Skyline ChillS Blast Chiller Freezer 200/170kg, 2x20 GN 1/1 or 600x400mm with touch screen control and remote refrigerating Unit - disassembled

The Electrolux Blast Chiller-Freezer 2x20GN1/1 200/170 kg, Remote, Roll-in, diassembled PNC 727751 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 380-415 V/3N ph/50/60 Hz
  • Electrical power max.: 3.28 kW
  • Heating power: 6.72 kW
  • Circuit breaker required
Installation:
  • Clearance: 5 cm on sides and back.
  • Please see and follow detailed installation instructions provided with the unit
Key Information:
  • Door hinges: Right Side
  • External dimensions, Width: 1800 mm
  • External dimensions, Height: 2270 mm
  • External dimensions, Depth: 1266 mm
  • Net weight: 468 kg
  • Shipping weight: 445 kg
  • Shipping weight 2: 246.5 kg
  • Shipping volume: 3.93 m
Water:
  • Drain line size: 3/4"
  • Pressure, bar min: 0
  • Water consumption: 0 lt/hr
Capacity:
  • Max load capacity: 200 kg
  • Trays type: GN 1/1;GN 2/1
Refrigeration Data
  • Remote refrigeration unit required.
  • Refrigerant type: R452A
  • Condenser cooling type: AIR
  • Suggested refrigeration power: 12650 W
  • Condition at evaporation temperature: -20 C
  • Condition at condensation temperature: 40 C
  • Condition at ambient temperature: 30 C
  • Connection pipes (remote) - outlet: 12 mm
  • Connection pipes (remote) - inlet: 22 mm
  • Note: refrigeration power calculated at a distance of 20 linear mt.

The Electrolux Blast Chiller-Freezer 2x20GN1/1 200/170 kg, Remote, Roll-in, diassembled PNC 727751 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
