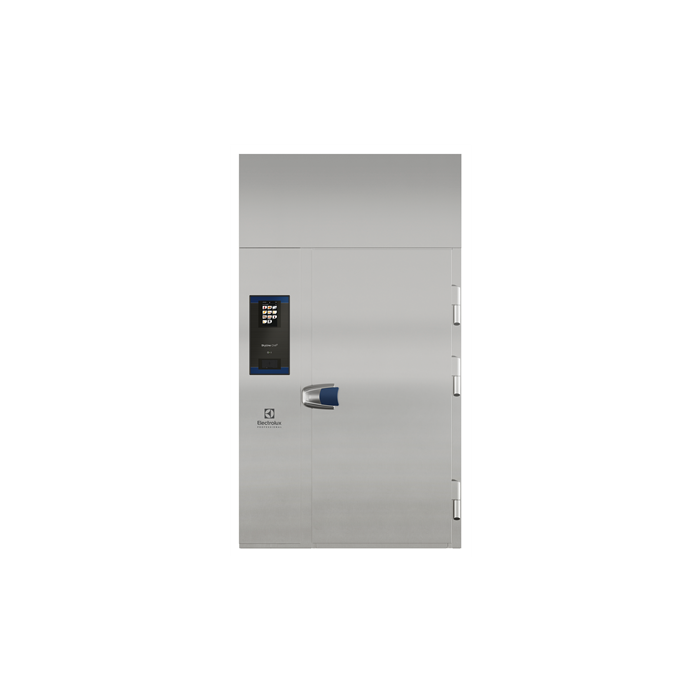

The Electrolux Blast Chiller-Freezer 20GN2/1 200/170 kg - Remote, Roll-in PNC 727755 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

• Supply voltage: 380-415 V/3N ph/50/60 Hz
• Electrical power max.: 6.4 kW
• Circuit breaker required
• Heating power: 6.4 kW

Installation:

• Clearance: 5 cm on sides and back.
• Please see and follow detailed installation instructions provided with the unit

Key Information:

• Door hinges: Right Side
• External dimensions, Width: 1400 mm
• External dimensions, Height: 2270 mm
• External dimensions, Depth: 1266 mm
• Net weight: 438 kg
• Shipping weight: 472 kg
• Shipping volume: 4.81 m

Water:

• Drain line size: 3/4"
• Pressure, bar min: 0
• Water consumption: 0 lt/hr

Capacity:

• Max load capacity: 200 kg
• Trays type: 600x400;GN 2/1

Refrigeration Data

• Remote refrigeration unit required.
• Refrigerant type: R452A
• Condenser cooling type:
• Suggested refrigeration power: 12650 W
• Condition at evaporation temperature: -20 C
• Condition at condensation temperature: 40 C
• Condition at ambient temperature: 30 C
• Connection pipes (remote) - outlet: 12 mm
• Connection pipes (remote) - inlet: 22 mm
• Note: refrigeration power calculated at a distance of 20 linear mt.

The Electrolux Blast Chiller-Freezer 20GN2/1 200/170 kg - Remote, Roll-in PNC 727755 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
