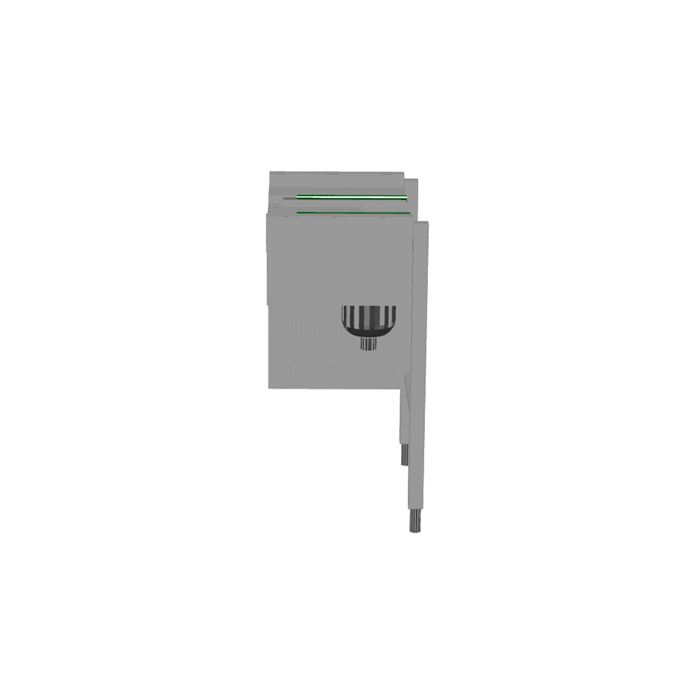

Electrolux Basket Cord Conveyor, Drive Unit - Left to Right, 400mm PNC 863167

In stock
SKU
863167

Main Features

  • Designed to be connected with rack type dishwasher.

  • The unit is part of the complete motorized handling system which can be installed either on loading and/ or unloading sides providing automatic loading and unloading the baskets for better ergonomic operation.

  • The Drive Unit has 3 different variable speeds controlled by rack type dishwasher.

  • Cord conveyor system generates smooth basket movement and improves hygiene.

  • Range built in modules to allow a large number of conveyor combinations.

  • "Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.

  • Drive Unit can sustain up to 10 m; for longer distances Central Units are needed.

  • Available as optional accessory a remote easy-to reach emergency-stop buttons fitted where required.

  • Main electrical controls protected by a water-resistant stainless steel box.

  • 304 AISI stainless steel construction throughout.

  • Delivered with legs.

  • Thick welded flanges for sturdy connection between the units.

  • Designed for 500x500mm baskets.

  • All surfaces smooth with polished finish.

  • 40x40mm stainless steel tubular and square legs.

  • 15mm reinforced polyurethane cord, for smooth and easy running.


Drive Unit of cord conveyor for baskets, Left>Right operation

The Electrolux Basket Cord Conveyor, Drive Unit - Left to Right, 400mm PNC 863167 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Electrical power max.: 0.3 kW
Key Information:
  • Feeding direction: from Left to Right
  • External dimensions, Width: 400 mm
  • External dimensions, Height: 910 mm
  • External dimensions, Depth: 620 mm
  • Net weight: 40 kg
  • Basin material: Stainless Steel AISI 304 - EN 1.4301
  • Feeding motors number: 1
  • Number of speeds: Variable
  • Max. speed: 3 m/min
  • Min. speed - m/min: 0.6 m/min

The Electrolux Basket Cord Conveyor, Drive Unit - Left to Right, 400mm PNC 863167 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
