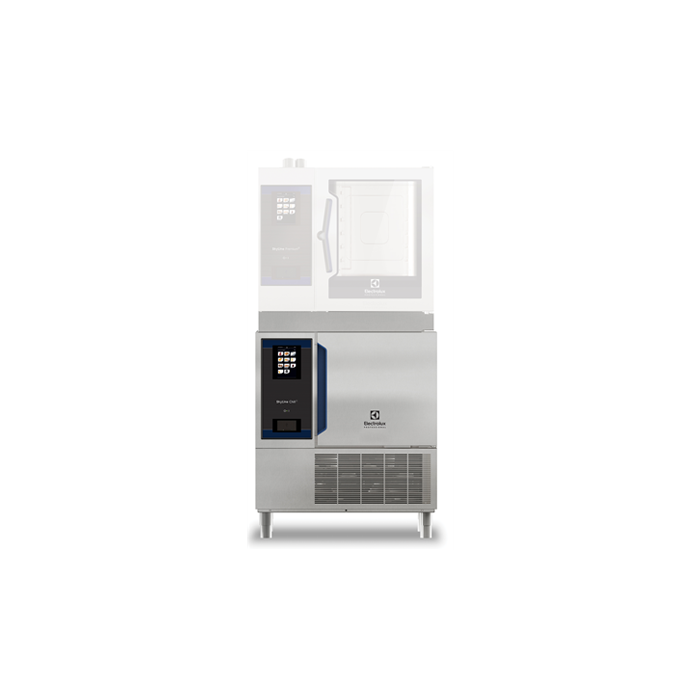

Electrolux 725538 SkyLine ChillS Blast Chiller-Freezer 6GN1/1 30/30 kg for tower installation (R290)

lowest price 7dayhef

Product Features

Blast Chilling cycle: 30 kg from +90°C up to + 3°C.
Freezing cycle: 30 kg from 90°C up to -41°C.
X-Freeze cycle: ideal for blast freezing all kinds of food (raw, half or fully cooked).
Lite-Hot cycle: ideal for soft heating preparations.
Multi-purpose internal structure suitable for gastronorm, bakery trays or ice-cream basins.
Turbo cooling: chiller works continuously at the desired temperature; ideal for continuous production.
Automatic mode including 10 food families (meat, poultry, fish, sauces and soup, vegetables, pasta/rice, bread, savory and sweet bakery, dessert, beverage fast cooling) with 100+ different pre-installed variants. Through Automatic Sensing Phase the blast chiller optimizes the chilling process according to size, quantity and type of food loaded to achieve the selected result. Real time overview of the chilling parameters. Possibility to personalize and save up to 70 variants per family.
Cycles+:- Cruise Cycle (Patented EP1716769B1 and related family) automatically sets the parameters for the quickest and best chilling (it works with probe)- Proving- Retarded Proving- Fast Thawing- Sushi&Sashimi (anisakis-free food)- Chill Sous-vide- Ice Cream- Yogurt- Chocolate
Programs mode: a maximum of 1000 programs can be stored in the blast chiller's memory, to recreate the exact same high standard at any time. The programs can be grouped in 16 different categories to better organize the menu. 16-step chilling programs also available.
MultiTimer function to manage up to 20 different chilling cycles at the same time, improving flexibility and ensuring excellent results. Can be saved up to 200 MultiTimer programs.
OptiFlow air distribution system to achieve maximum performance in chilling/heating eveness and temperature control thanks to a special design of the chamber combined with high precision variable speed fan.
Fan with 7 speed levels. Fan stops in less than 5 seconds when door is opened.
3-point multi sensor core temperature probe for high precision and food safety.
Remaining time estimation for probe-driven cycles based on artificial intelligence techniques (ARTE 2.0 Patented US7971450B2 and related family) for an easier planning of the activities.
Customizable pre-cooling and pre-heating functions.
Automatic and manual defrosting and drying.
Suitable for tower installation including stacking kit.
Performance guaranteed at ambient temperatures of +43°C (Climatic class 5).
Built-in refrigeration unit.
Solenoid valve to automatically manage the gas pressure in the thermodynamic circuit.
Main components in 304 AISI stainless steel.
Evaporator with antirust protection.
Motors and fan waterproof protected IP54.
Hygienic internal chamber with all rounded corners for easy cleaning.
Removable magnetic gasket door with hygienic design.
Ventilator swinging hinged panel for access to the evaporator for cleaning.
Door stopper to keep the door open in order to avoid the formation of bad smells (kit available to be mounted on site, depending on preferred door hinge).
Automatic heated door frame.
lowest price 7dayhef

Description / Electrolux 725538 SkyLine ChillS Blast Chiller-Freezer 6GN1/1 30/30 kg for tower installation (R290)

The Electrolux 725538 SkyLine ChillS Blast Chiller-Freezer 6GN1/1 30/30 kg for tower installation (R290) comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 380-415 V/3N ph/50 Hz

    Electrical power max.: 3.40000009536743 kW

    Heating power: 0.77 kW

    Circuit breaker required

  • Water

    Drain line size: 1"1/2

  • Installation

    Clearance: 5 cm on sides and back.

    Please see and follow detailed installation instructions provided with the unit

  • Refrigeration Data

    Built-in Compressor and Refrigeration Unit

    Refrigeration power at evaporation temperature: -10 °C

    Operating temperature min.: -41 °C

    Operating temperature max.: 90 °C

    Condenser cooling type: AIR

  • Capacity

    Max load capacity: 30 kg

    Number and type of grids: 6 (GN 1/1; 600x400)

    Number and type of basins: 8 (360x250x80h)

  • Key Information

    Door hinges: Right Side

    External dimensions, Width: 897 mm

    External dimensions, Depth: 937 mm

    External dimensions, Height: 1020 mm

    Net weight: 170 kg

    Shipping weight: 184 kg

    Shipping volume: 1.47 m³sup3;

  • Refrigerant type: R290

    GWP Index: 3

    Refrigeration power: 4837 W

    Refrigerant weight: 140 g

    Energy consumption, cycle (chilling): 0.0957 kWh/kg

    Energy consumption, cycle (freezing): 0.2669 kWh/kg

  • Chilling Cycle Time (+65°C to +10°C): 74 min

    Full load capacity (chilling): 30 kg

    Freezing Cycle Time (+65°C to -18°C): 252 min

    Full load capacity (freezing): 30 kg

    Test performed in a test room at 30°C to chill/ freeze (+10°C/-18°C) a full load of 40mm deep trays filled with mashed potatoes evenly distributed up to a height of 35 mm at starting temperature between 65° and 80°C within 120/270min.

  • ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001

The Electrolux 725538 SkyLine ChillS Blast Chiller-Freezer 6GN1/1 30/30 kg for tower installation (R290) is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.
