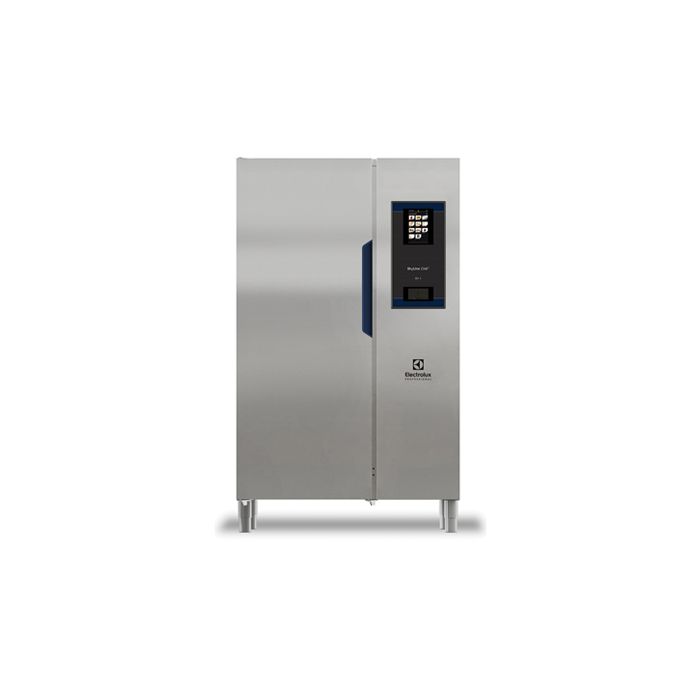

Electrolux 725165 SkyLine ChillS Blast Chiller-Freezer 20GN1/1 100/85 kg - Remote for CO2

lowest price 7dayhef

Skyline ChillS Blast Chiller Freezer 100/85kg, 20 GN 1/1 or 600x400mm with touch screen control and remote refrigerating Unit, CO2 with valve

Product Features


• High resolution full touch screen interface (translated in more than 30 languages) - color-blind friendly panel.
• Blast Chilling cycle: 100 kg from +90°C up to + 3°C in less than 90 minutes.
• Blast Freezing cycle: 85 kg from 90°C up to -18°C in less than four hours.
• Chilling cycle (+10°C to -41°C) with automatic preset cycles:
- Soft chilling (air temperature 0°C), ideal for delicate food and small portions.
- Hard chilling (air temperature -20°C), ideal for solid food and whole pieces.
• X-Freeze cycle (+10°C to -41°C): ideal for blast freezing all kinds of food (raw, half or fully cooked).
• Lite-Hot cycle (+40°C to -18°C): ideal for soft heating preparations.
• Holding at +3 °C for chilling or -22 °C for freezing, automatically activated at the end of each cycle, to save energy and maintain the target temperature (manual activation is also possible).
• Turbo cooling: chiller works continuously at the desired temperature; ideal for continuous production.
• Automatic mode including 10 food families (meat, poultry, fish, sauces and soup, vegetables, pasta/rice, bread, savory and sweet bakery, dessert, beverage fast cooling) with 100+ different pre-installed variants. Through Automatic Sensing Phase the blast chiller optimizes the chilling process according to size, quantity and type of food loaded to achieve the selected result. Real time overview of the chilling parameters. Possibility to personalize and save up to 70 variants per family.
• OptiFlow air distribution system to achieve maximum performance in chilling/heating eveness and temperature control thanks to a special design of the chamber.
• Cycles+:
- Cruise Chilling (Patented EP1716769B1 and related family) automatically sets the parameters for the quickest and best chilling (it works by probe)
- Fast Thawing
- Sushi&Sashimi (anisakis-free food)
- Sous-vide chilling
- Ice Cream
• Programs mode: a maximum of 1000 programs can be stored in the blast chiller's memory, to recreate the exact same high standard at any time. The programs can be grouped in 16 different categories to better organize the menu. 16-step chilling programs also available.
• MultiTimer function to manage up to 20 different chilling cycles at the same time, improving flexibility and ensuring excellent results. Can be saved up to 200 MultiTimer programs.
• 3-point multi sensor core temperature probe for high precision and food safety.
• 6-point multi sensor core temperature probe for maximum precision and food safety (optional accessory).
• Pictures upload for full customization of cycles.
• Remaining time estimation for probe-driven cycles based on artificial intelligence techniques (ARTE 2.0 Patented US7971450B2 and related family) for an easier planning of the activities.
• Customizable pre-cooling function.
• Automatic and manual defrosting and drying.
• Make-it-mine feature to allow full personalization or locking of the user interface.
• SkyHub lets the user group the favorite functions in the homepage for immediate access.
• MyPlanner works as an agenda where the user can plan the daily work and receive personalized alerts for each task.
• With SkyDuo the Oven and the Blast Chiller are connected to each other and communicate in order to guide the user through the cook&chill process optimizing time and efficiency (requires optional accessory).
• USB port to download HACCP data, share chilling programs and configurations.
• Connectivity ready for real time access to connected appliances from remote and HACCP monitoring (requires optional accessory).
• Trainings and guidances supporting materials easily accessible by scanning QR-Code with any mobile device.
• Automatic consumption visualization at the end of the cycle.
• Performance guaranteed at ambient temperatures of +43°C (Climatic class 5).
• Human centered design with 4-star certification for ergonomics and usability.
• Remote refrigeration unit (optional accessory).
• Environmentally friendly: R452a as refrigerant gas.
• Solenoid valve to automatically manage the gas pressure in the thermodynamic circuit.
• Main components in 304 AISI stainless steel.
• Evaporator with antirust protection.
• Motors and fan waterproof protected IP23.
• Seamless hygienic internal chamber with all rounded corners for easy cleaning.
• Removable magnetic gasket door with hygienic design.
• Ventilator swinging hinged panel for access to the evaporator for cleaning.
• Door stopper to keep the door open in order to avoid the formation of bad smells.
• Automatic heated door frame.
• No water connections required.
Waste water can be plumbed into drain, but can also be collected in an optional waste container.
lowest price 7dayhef

Description / Electrolux 725165 SkyLine ChillS Blast Chiller-Freezer 20GN1/1 100/85 kg - Remote for CO2

The Electrolux SkyLine ChillS Blast Chiller-Freezer 20GN1/1 100/85 kg - Remote for CO2 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 380-415 V/3N ph/50/60 Hz

    Electrical power max.: 3 kW

    Heating power: 3 kW

    Circuit breaker required

  • Water

    Drain line size: 1/2"

  • Installation

    Clearance: 5 cm on sides and back.

    Please see and follow detailed installation instructions provided with the unit

  • Capacity

    Max load capacity: 100 kg

    Trays type: GN 1/1

  • Key Information

    Door hinges: Left Side

    External dimensions, Width: 1040 mm

    External dimensions, Depth: 850 mm

    External dimensions, Height: 1741 mm

    Net weight: 200 kg

    Shipping weight: 230 kg

    Shipping volume: 2.41 m³

  • Refrigeration Data

    Remote refrigeration unit required.

    Refrigerant type:

    GWP Index:

    Condenser cooling type:

    Suggested refrigeration power: 9480 W

    Condition at evaporation temperature: -20 °C

    Condition at condensation temperature: 40 °C

    Condition at ambient temperature: 30 °C

    Connection pipes (remote) - outlet: 16 mm

    Connection pipes (remote) - inlet: 9.5 mm

    Refrigeration power calculated at a distance of linear 20mt.

  • Product Information (EN17032 ‐ Commission Regulation EU 2015/1095)

    Chilling Cycle Time (+65°C to +10°C): 120 min

    Full load capacity (chilling): 100 kg

    Freezing Cycle Time (+65°C to -18°C): 270 min

    Full load capacity (freezing): 85 kg

Documents

The Electrolux SkyLine ChillS Blast Chiller-Freezer 20GN1/1 100/85 kg - Remote for CO2 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
