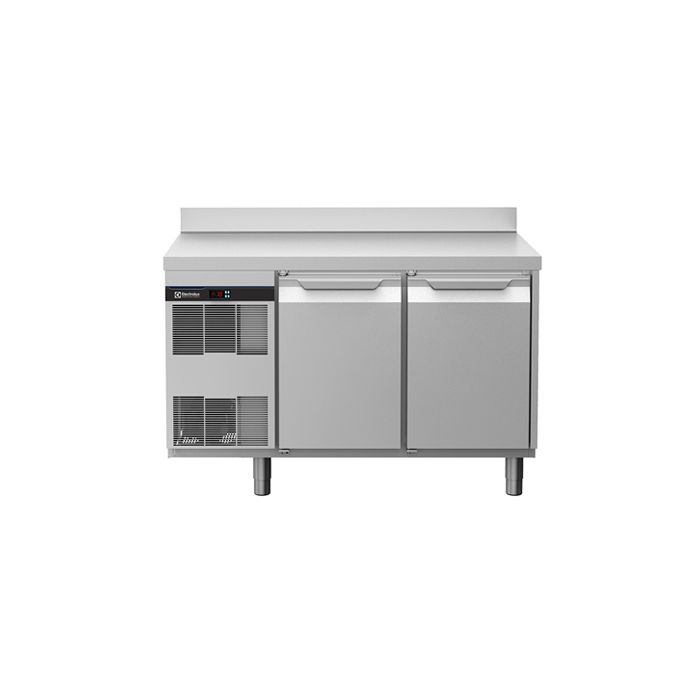

Electrolux 715059 Digital Undercounter ecostore HP Concept Freezer Counter with Splashback - 2 Door (R290)

lowest price 7dayhef

2-door Freezer Counter, -22-15°C, AISI 304, with splashback, R290

Product Features


• Digital control panel with temperature display.
• CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
• Raised rear upstand permits unit to be connected up against the wall for better hygiene.
• Adjustable temperature range from -15 °C to -22 °C to suit meat, fish and dairy storage requirements.
• Anti-tilt runners accept GN 1/1 containers.
• Self closing stainless steel doors (< 90°).
• Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
• Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
• Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
• Tropicalized unit (43°C ambient temperature).
• 0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
• Hot gas automatic evaporation of defrost water.
• Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).
• Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
• Frontal and easy access to all components in the cooling unit.
• Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
• Certified safety CE requirements.
• Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
• Small footprint to fit even in limited environments.
• Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
• Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
• Internal and external structure in AISI 304 stainless steel. External back panel in galvanized steel and bottom in AISI 430 stainless steel as standard on all models.
• Developed and produced in ISO 9001 and ISO 14001 certified factory.
• Fault code display.
• Interior base with rounded corners, pressed from a single sheet.
• Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.
• Worktop in AISI 304 Stainless steel with a 50 mm profile.
• Pre-arranged for drain-pipe.
• Built-in refrigeration unit.
• Anti-drip profile on stainless steel worktop edge.
• 2 compartments with 2 doors.
• If needed, working top can be removed for easier handling during installation (in case of narrow doors).
• Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
• Excellent space optimisation thanks to the compact dimensions.
• Extractable cooling unit to facilitate maintenance.
lowest price 7dayhef

Description / Electrolux 715059 Digital Undercounter ecostore HP Concept Freezer Counter with Splashback - 2 Door (R290)

The Electrolux Digital Undercounter ecostore HP Concept Freezer Counter with Splashback - 2 Door (R290) comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 220-240 V/1 ph/50 Hz

    Electrical power max.: 0.49 kW

    Defrost Power:

    Current consumption: 3.3 Amps

    Plug type: CE-SCHUKO

  • Key Information

    Gross capacity: 290 lt

    Net Volume: 181 lt

    Door hinges: 1 Left+1 Right

    External dimensions, Width: 1345 mm

    External dimensions, Depth: 700 mm

    External dimensions, Height: 900 mm

    Internal Dimensions, Width: 798 mm

    Internal Dimensions, Depth: 560 mm

    Internal Dimensions, Height: 550 mm

    Net weight: 115 kg

    Shipping volume: 1.13 m³

    Depth with doors open: 1110 mm

    Height adjustment: 0/0 mm

  • Product Information (EU Regulation 2015/1094)

    Energy Class: C

    Yearly and daily energy consumption: 1546kWh/year - 4kWh/24h

    Climate class: Heavy Duty (5)

    Energy Efficiency Index (EEI): 45.81

  • Refrigeration Data

    Control type: Digital

    Compressor power: 1 hp

    Refrigerant type: R290

    GWP Index: 3

    Refrigeration power: 643 W

    Refrigeration power at evaporation temperature: -30 °C

    Refrigerant weight: 145 g

    Operating temperature min.: -15 °C

    Operating temperature max.: -22 °C

    Operating mode: Ventilated
