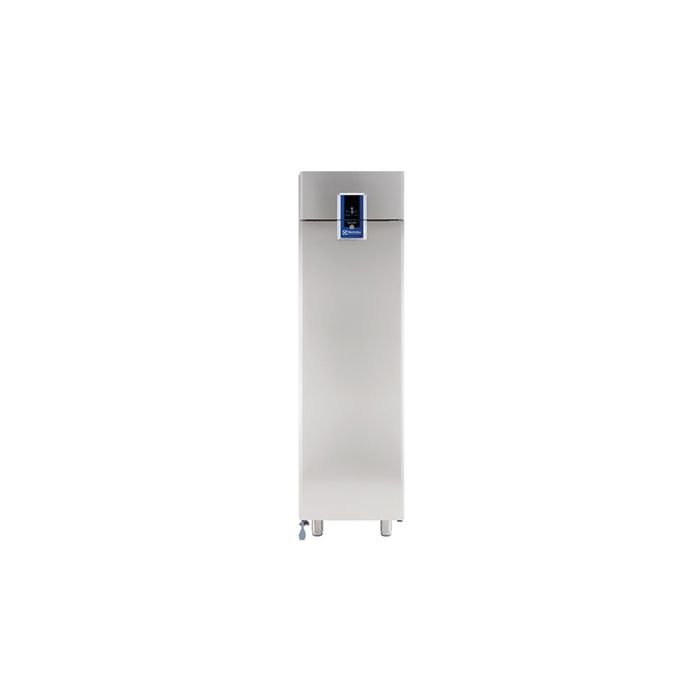

Electrolux 691342 Prostore 500 1 Door Digital Freezer, 470lt (-15/-22 °C) - Remote, CO2

lowest price 7dayhef

1-door prostore Freezer 470lt, -22-15°C, AISI 304, remote, CO2 with valve

Product Features


• Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
• IPX5 frontal water protection.
• Large digital white-digit display with cabinet temperature display and setting and turbo frost cycle (to rapidly cool warm loads).
• Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
• Large storage area suitable to contain 520x442 mm grids or shelves to improve net capacity.
• Optimized airflow within the chamber guarantees uniformity of temperature on all grids.
• Frost Watch Control: fully automatic defrost starts only when ice is actually building-up in the evaporator and adapt the defrosting duration to guarantee perfect ice removal while optimizing energy efficiency consumption.
• Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.
• Greater storage space: internal structure with numerous charging positions available to host grids, ensuring higher net capacity.
• Adjustable temperature range from -15°C to -22°C.
• Insulation thickness: 65 mm of polyurethane injected with ecological foaming gas cyclopentane to ensure effective insulation with minimum energy consumption (thermal conductivity: 0,020 W/m*K).
• Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
• Optical door microswitch to stop the fan once the door is opened, thus minimizing energy waste.
• Model requires only 1 phase 230V/50Hz supply and can be plugged straight into an existing power socket.
• Interior LED light to save energy and for best internal visibility.
• Complies with main international certification bodies and is CE marked.
• Prearranged for remote alarm.
• Low noise level.
• Self closing and on site reversible left/right doors.
• Stainless steel AISI 304 external panels (galvanized external back).
• Lockable door.
• Inner cell with rounded corners, bottom pressed in only one piece.
• Stainless steel runners and supports easily disassembled.
• Internal components removable without the use of tools to facilitate cleaning operations.
• Pressed stainless steel door handle without joints gathering dust and dirt.
• Easy access to the main components for maintenance.
• Developed and produced in ISO 9001 and ISO 14001 certified factory.
• Solenoid valve included.
• Automatic heated door frame.
lowest price 7dayhef

Description / Electrolux 691342 Prostore 500 1 Door Digital Freezer, 470lt (-15/-22 °C) - Remote, CO2

The Electrolux Prostore 500 1 Door Digital Freezer, 470lt (-15/-22 °C) - Remote, CO2 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 220-240 V/1 ph/50/60 Hz

    Electrical power max.: 0.16 kW

  • Key Information

    Gross capacity: 470 lt

    Door hinges: Right Side

    External dimensions, Width: 600 mm

    External dimensions, Depth: 700 mm

    External dimensions, Depth with Doors Open: 1226 mm

    External dimensions, Height: 2040 mm

    Number and type of doors: 1 Full

    Internal Dimensions, Width: 472 mm

    Internal Dimensions, Depth: 582 mm

    Internal Dimensions, Height: 1474 mm

    Height adjustment: 15/40 mm

    Number and type of grids (included): 5 - 520x442

    Type of external material: 304 AISI

    Type of internal material: 304 AISI

    Number of positions & pitch: 44; 22 mm

  • Refrigeration Data

    Control type: Digital

    Condesation temperature 55 °C

    Refrigeration type: CO2 (R744)

    Defrost type: Electric

    Suggested refrigeration power: 654 W

    Condition at evaporation temperature: -30 °C

    Condition at condensation temperature: 55 °C

    Condition at ambient temperature: 43 °C

    Connection pipes (remote) - outlet: 8 mm

    Connection pipes (remote) - inlet: 8 mm

    *Note: Ref. Power calculated at a linear distance of 15 mt (piping)

Documents

The Electrolux Prostore 500 1 Door Digital Freezer, 470lt (-15/-22 °C) - Remote, CO2 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
