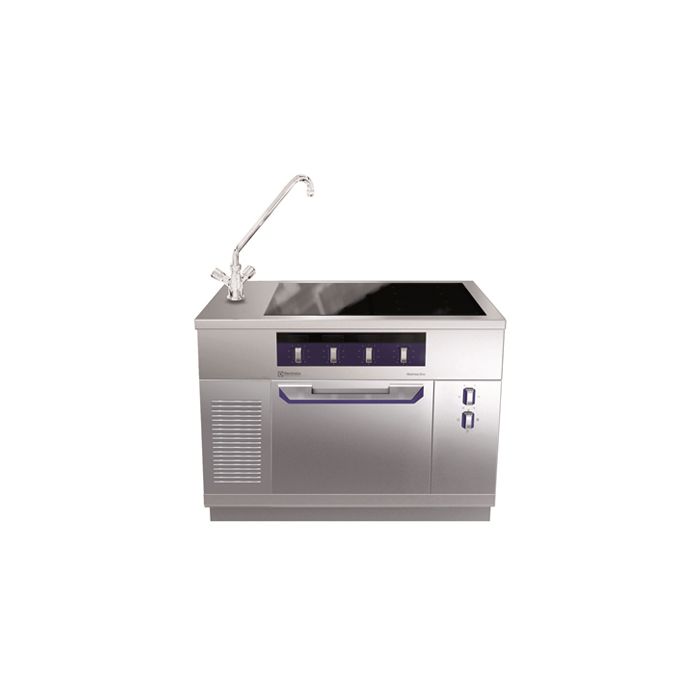

Electrolux 589862 Modular Cooking Range Line thermaline 90 - Full Surface Induction Top on Electric Static Oven with Right Tap, 1 Side - H=700

Full Surface Induction Top on Open Base, right-side, one-side operated - H3 - Marine

Product Features


• Fast deployment with full heating power immediately.
• Electronic sensor for precise temperature control.
• Manual control of humidity in cooking chamber.
• The upper heating element of the oven can also be used for grilling.
• Heavy duty thermostat with temperature range up to 300°C.
• Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate.
• Handles are ergonomically designed with silicon "soft" grip for easy handling and cleaning.
• 9 power levels.
• Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.
• Metal knobs with embedded hygienic silicon "soft" grip for easier handling and cleaning. The special design of the controls prevent infiltration of liquids or soil into vital components.
• THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
• All major components may be easily accessed from the front.
• IPX5 water resistance certification.
• The smooth glass-ceramic surface can be quickly and easily cleaned, thus providing maximum hygiene.
• The large surface multi-coil induction top offers a substantial increase in pan and pot capacity thanks to the seamless transition between individual heating zones, ideal for à la carte operation.
• Pans can easily be moved from one area to another without lifting.
• Overheat protection: a temperature sensor switches off the supply in case of overheating.
• Low heat dissipation to the kitchen.
• Almost the entire surface of the ceramic plate can be used without “dead” spots.
• Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
• 2 mm top in 1.4301 (AISI 304).
• Flat surface construction with minimal hidden areas to easily clean all surfaces
• Control light for each zone.
• Internal frame for heavy duty sturdiness in stainless steel.

Description / Electrolux 589862 Modular Cooking Range Line thermaline 90 - Full Surface Induction Top on Electric Static Oven with Right Tap, 1 Side - H=700

The Electrolux Modular Cooking Range Line thermaline 90 - Full Surface Induction Top on Electric Static Oven with Right Tap, 1 Side - H=700 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 440 V/3 ph/50/60 Hz

    Current consumption: 48 Amps

    Total Watts: 33 kW

  • Key Information

    Configuration: On Oven;One-Side Operated

    Front Plates Power: 7 - 7 kW

    Back Plates Power: 7 - 7 kW

    Front Plates dimensions: 420x370 420x370

    Back Plates dimensions: 420x370 420x370

    Oven working Temperature: 60 °C MIN; 300 °C MAX

    Oven Cavity Dimensions (width): 575 mm

    Oven Cavity Dimensions (height): 300 mm

    Oven Cavity Dimensions (depth): 700 mm

    External dimensions, Width: 1200 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Net weight: 221 kg

    Oven GN: GN 2/1

Documents

The Electrolux Modular Cooking Range Line thermaline 90 - Full Surface Induction Top on Electric Static Oven with Right Tap, 1 Side - H=700 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
