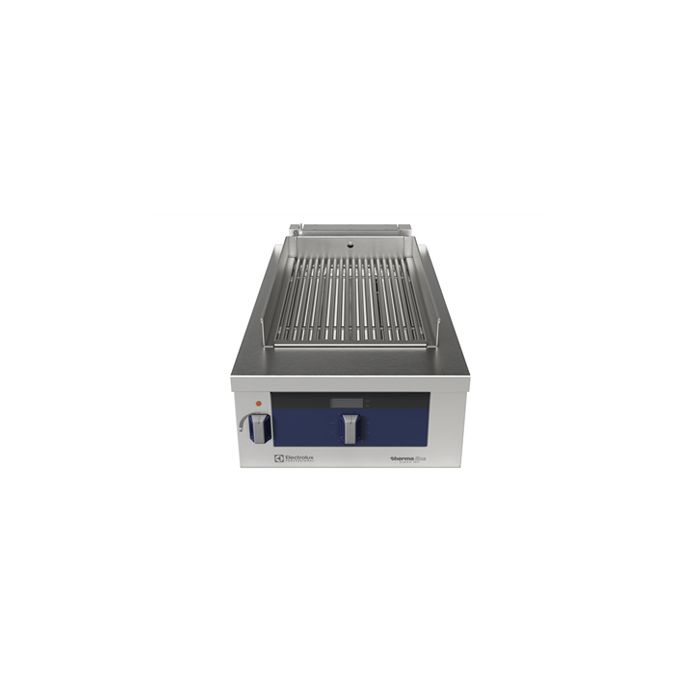

Electrolux 589284 Modular Cooking Range Line thermaline 90 - Half Module Electric Chargrill, 1 Side

lowest price 7dayhef

Electric Chargrill Top, one-side operated

Product Features


• 9 power levels.
• Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.
• Removable 2mm thick steel U-shaped grids for fast heating of cooking surface.
• Incoloy armoured heating elements positioned under the cooking grid.
• Heating elements tilt 90° for easy cleaning.
• Removable stainless steel deflectors to recuperate heat and reduce cooking time.
• Stainless steel high splash guards on the rear and sides of cooking surface.
• All major components may be easily accessed from the front.
• THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
• Metal knobs with embedded hygienic silicon "soft" grip for easier handling and cleaning. The special design of the controls prevent infiltration of liquids or soil into vital components.
• Each bank of elements has an independent power regulation through a control knob.
• Fixed well with drain to collect residual cooking juices and grease.
• Large drain protected by overflow and filter.
• Water must be added to well before operation.
• Water filling tap with knob control.
• IPX5 water protection.
• 2 mm top in 1.4301 (AISI 304).
• Flat surface construction with minimal hidden areas to easily clean all surfaces
• Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).
• Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
lowest price 7dayhef

Description / Electrolux 589284 Modular Cooking Range Line thermaline 90 - Half Module Electric Chargrill, 1 Side

The Electrolux Modular Cooking Range Line thermaline 90 - Half Module Electric Chargrill, 1 Side comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3 ph/50/60 Hz

    Total Watts: 5.4 kW

  • Key Information

    Configuration: One-Side Operated;Top

    External dimensions, Width: 500 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 250 mm

    Net weight: 65 kg

    Cooking surface - material: Stainless Steel AISI 441 ‐ Din 1.4509

    Grid dimensions: 343 mm

Documents

The Electrolux Modular Cooking Range Line thermaline 90 - Half Module Electric Chargrill, 1 Side is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
