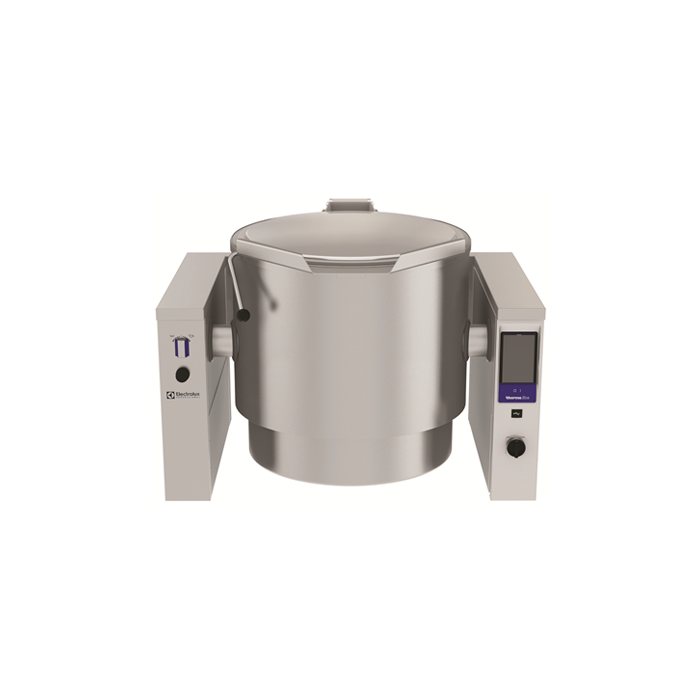

Electrolux 587184 Steam tilting Boiling Pan 300lt with electronic steam control, GuideYou panel, freestanding - Marine

lowest price 7dayhef
High Productivity Cooking Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile - Electronic-Marine

Product Features

Kettle is suitable to boil, steam, poach, braise or simmer all kinds of produce.
Produce is uniformly heated in the vessel by an indirect heating system using saturated steam.
Isolated upper well rim avoids risk of harm for the user.
Max pressure of inner jacket at 1,5 bar; minimum working pressure at 0.5 bar.
IPX6 water resistant.
Ergonomic vessel dimensions, with a large diameter and shallow depth facilitates stirring and gentle food handling.
Edge of the large pouring lip can be equipped with a strainer (option).
Built in temperature sensor to precisely control the cooking process.
Motorized, variable pan tilting with "SOFT STOP". Tilting and pouring speeds can be precisely adjusted. Pan can be tilted over 90° to facilitate pouring and cleaning operations.
USB connection to easily update the software, upload/download recipes and download HACCP data.
Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar.
External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.
Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.
Safety valve avoids overpressure of the steam in the double jacket.
External steam feeding; 1,5 bars working pressure.
Highly-visible and bright led TOUCH control panel features user-friendly icons and intuitive self-explanatory command options. Display visualizes:
- Actual and set temperature
- Set and remaining cooking time
- Pre-heating phase (if activated)
- GuideYou Panel (if activated)
- Deferred start
- Soft Function to reach the target temperature smoothly
- 9 Power Control levels from simmering to fierce boiling
- Pressure mode (in pressure models)
- Stirrer ON/OFF settings (in round boiling models)
- Error codes for quick trouble-shooting
- Maintenance reminders
GuideYou Panel - activated by the user via settings - to easily follow the multiphase recipes, granting a proper and controlled cooking and a better appliance optimization.
The system will provide maintenance reminders, in line with ESSENTIA program, helping the user to properly take care of the product, avoiding downtimes.
Safety thermostat protects against low water level in the double jacket.
Water mixing tap is available as optional accessory to make water filling and pan cleaning easier.
Ergonomic and user friendly thanks to the high tilting position and the pouring lip design which allow to easily fill containers.
Front-mounted inclined led “TOUCH” control panel with recessed deep drawn casing, features self-explanatory display functions which guide operator throughout the cooking process: simultaneous display of actual and set temperature as well as set cooking time and remaining cooking time; real time clock; “SOFT” control for gentle heating up for delicate food; 9 power simmering levels from gentle to heavy boiling; timer for deferred start; error display for quick trouble-shooting.
Possibility to store recipes in single or multiphase cooking process, with different temperature settings.
Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.
Can be prearranged for energy optimisation or external surveillance systems (optional).
98% recyclable by weight; packaging material free of toxic substances.
lowest price 7dayhef

Description / Electrolux 587184 Steam tilting Boiling Pan 300lt with electronic steam control, GuideYou panel, freestanding - Marine

The Electrolux 587184 Steam tilting Boiling Pan 300lt with electronic steam control, GuideYou panel, freestanding - Marine comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 230 V/1 ph/50/60 Hz

    Total Watts: 0.2 kW

  • Steam generation: External source

    Steam inlet size: 1"

    Steam pressure Max: 1.5 bar

    Steam supply, relative dynamic pressure: 1 min bar, 1.5 max bar

  • Steam consumption: 105 kg/hr

  • Pressure, bar min/max: 2-6 bar

  • Configuration: Round;Tilting

    Working Temperature MIN: 50 °C

    Working Temperature MAX: 110 °C

    Vessel (round) diameter: 900 mm

    Vessel (round) depth: 570 mm

    External dimensions, Width: 1500 mm

    External dimensions, Depth: 1000 mm

    External dimensions, Height: 700 mm

    Net weight: 390 kg

    Net vessel useful capacity: 300 lt

    Tilting mechanism: Automatic

    Double jacketed lid: ✓

    Heating type: Indirect

  • Type of installation: FS on concrete base;FS on feet;On base;Standing against wall

Documents

The Electrolux 587184 Steam tilting Boiling Pan 300lt with electronic steam control, GuideYou panel, freestanding - Marine is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.

More Information

Boiling Pan Capacity 300 Litres
