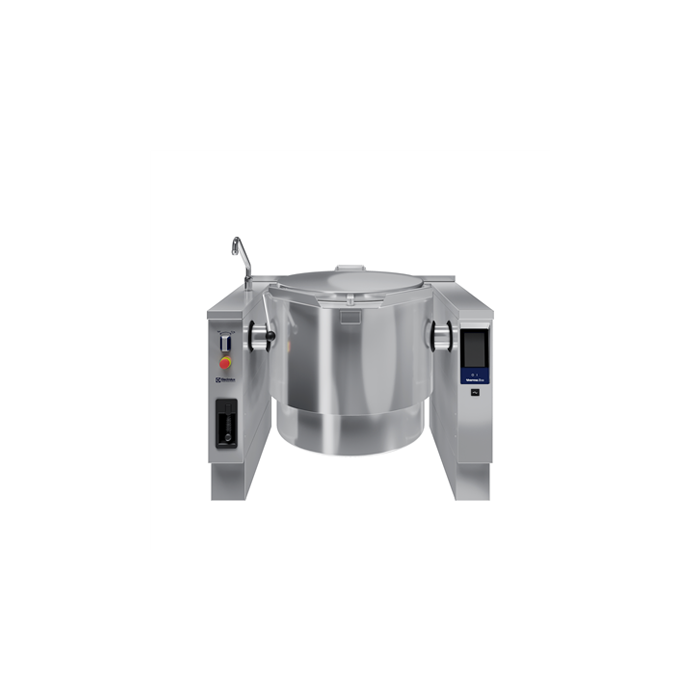

Electrolux 586944 Electric tilting Boiling Pan prearranged for stirrer 150lt (h), , auto. GuideYou Panel, freestanding

lowest price 7dayhef
ProThermetic Sprint Electric Tilting Boiling Pan, 150lt Hygienic Profile, Freestanding with Stirrer

Product Features

Max pressure of inner jacket at 1.7 bar; minimum working pressure at 1 bar. Allows temperature control between 50 and 110°C.
Kettle is suitable to boil, steam, poach, pan fry or simmer all kinds of produce.
Delivered with:
- swivel arm with automatic hot/cold water filling
- spray gun
- rear closing panel
- C-board (backsplash for the relevant model)
Motorized, variable pan tilting with "SOFT STOP". Tilting and pouring speeds can be precisely adjusted. Pan can be tilted over 90° to facilitate pouring and cleaning operations.
Kettle is jacketed up to 159 mm from upper rim.
Built in temperature sensor to precisely control the cooking process.
Ergonomic vessel dimensions, with a large diameter and shallow depth facilitates stirring and gentle food handling.
Isolated upper well rim avoids risk of harm for the user.
Edge of the large pouring lip can be equipped with a strainer (option).
USB connection to easily update the software, upload/download recipes and download HACCP data.
Connectivity ready, to connected appliances from remote via cable and data monitoring, including HACCP (requires optional accessory).
IPX6 water resistant.
Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar.
External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.
Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.
Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.
Highly-visible and bright led TOUCH control panel features user-friendly icons and intuitive self-explanatory command options. Display visualizes:
- Actual and set temperature
- Set and remaining cooking time
- Pre-heating phase (if activated)
- GuideYou Panel (if activated)
- Deferred start
- Soft Function to reach the target temperature smoothly
- 9 Power Control levels from simmering to fierce boiling
- Pressure mode (in pressure models)
- Stirrer ON/OFF settings (in round boiling models)
- Error codes for quick trouble-shooting
- Maintenance reminders
Possibility to store recipes in single or multiphase cooking process, with different temperature settings.
GuideYou Panel - activated by the user via settings - to easily follow the multiphase recipes, granting a proper and controlled cooking and a better appliance optimization.
The system will provide maintenance reminders, in line with ESSENTIA program, helping the user to properly take care of the product, avoiding downtimes.
Safety thermostat protects against low water level in the double jacket.
Safety valve avoids overpressure of the steam in the double jacket.
Can be prearranged for energy optimisation or external surveillance systems (optional).
Stirrer with rotation speed of 25 RPMs, available as optional accessory.
98% recyclable by weight; packaging material free of toxic substances.
lowest price 7dayhef

Description / Electrolux 586944 Electric tilting Boiling Pan prearranged for stirrer 150lt (h), , auto. GuideYou Panel, freestanding

The Electrolux 586944 Electric tilting Boiling Pan prearranged for stirrer 150lt (h), splashback, auto. H/C water filling with swivelling arm, spray gun, rear closing kit, GuideYou Panel, freestanding comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3N ph/50/60 Hz

    Total Watts: 24.6

  • Configuration: Round;Tilting;Pre-arranged for stirrer;With splashback

    Working Temperature MIN: 50 °C

    Working Temperature MAX: 110 °C

    Vessel (round) diameter: 710 mm

    Vessel (round) depth: 465 mm

    External dimensions, Width: 1300 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Net weight: 290 kg

    Net vessel useful capacity: 150 lt

    Tilting mechanism: Automatic

    Double jacketed lid: ✓

    Heating type: Indirect

  • Type of installation: FS on concrete base;FS on feet;On base;Standing against wall

Documents

The Electrolux 586944 Electric tilting Boiling Pan prearranged for stirrer 150lt (h), splashback, auto. H/C water filling with swivelling arm, spray gun, rear closing kit, GuideYou Panel, freestanding is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.

More Information

Boiling Pan Capacity 150 Litres
