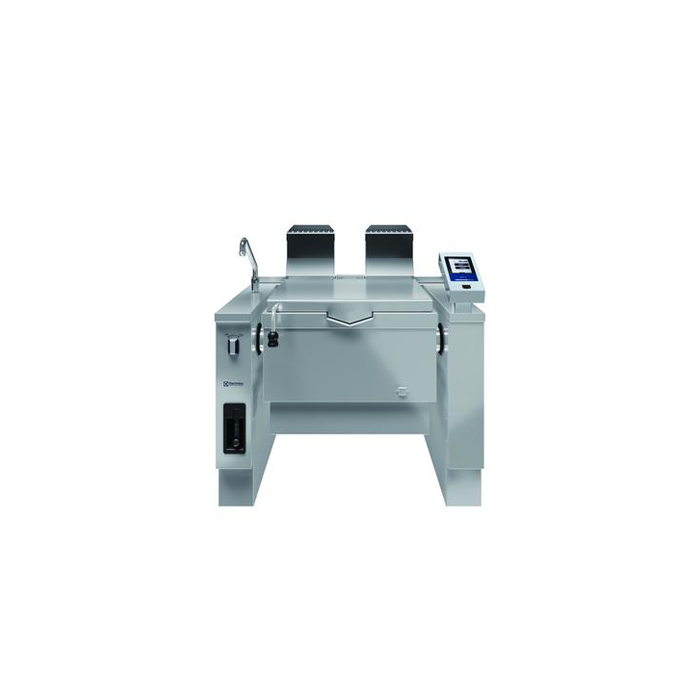

Electrolux 586295 ProThermetic Sprint Gas Tilting Braising Pan, 90lt, Hygienic Profile, Freestanding, external control panel

Main Features

Multifunctional cooking appliance used for roasting, pot-roasting, braising, simmering, boiling and steaming.
Delivered with:- swivel arm with automatic hot/cold water filling- spray gun- rear closing panel- C-board (backsplash)
Pan size is GN compliant.
Motorized, variable pan tilting with "SOFT STOP". Tilting and pouring speeds can be precisely adjusted. Pan can be tilted over 90° to facilitate pouring and cleaning operations.
Easy to clean cooking surface due to large-radius edges and corners.
Optimum heat distribution in the food provides best cooking results in terms of taste, colour and consistency and in terms of vitamin preserving.
Built-in temperature sensor provides efficient temperature control: the power is supplied as and when required to keep the set temperature value without exceeding it.
No overshooting of cooking temperatures, fast reaction.
USB connection to easily update the software, upload/download recipes and download HACCP data.
IPX6 water resistant.

Sustainability

High-quality thermal insulation of the pan saves energy and keeps operating ambient temperature low.

User Interface & Data Management

Connectivity ready, to connected appliances from remote via cable and data monitoring, including HACCP (requires optional accessory).

Construction

Lateral surface of the vessel in DIN 1.4301/AISI 304.
Multipurpose non-stick cooking surface in 18 mm thick compound: 3 mm shot-blasted 1.4404 (AISI 316L) stainless steel surface, seamlessly welded to 15 mm mild steel bottom.
Gas appliance has robust multiple burners with electronic ignition and monitoring for a safer operation. Operation with natural gas and LPG (on request).
External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.
Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.
Heatproof handle with non-slip surface.
Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.
Highly-visible and bright led TOUCH control panel features user-friendly icons and intuitive self-explanatory command options. Display visualizes: - Actual and set temperature - Set and remaining cooking time - Pre-heating phase (if activated) - GuideYou Panel (if activated) - Deferred start - Soft Function to reach the target temperature smoothly - 9 Power Control levels from simmering to fierce boiling - Pressure mode (in pressure models) - Stirrer ON/OFF settings (in round boiling models) - Error codes for quick trouble-shooting - Maintenance reminders
Possibility to store recipes in single or multiphase cooking process, with different temperature settings.
GuideYou Panel - activated by the user via settings - to easily follow the multiphase recipes, granting a proper and controlled cooking and a better appliance optimization.The system will provide maintenance reminders, in line with ESSENTIA program, helping the user to properly take care of the product, avoiding downtimes.
Both "Boiling" or "Braising" mode functions available.
98% recyclable by weight; packaging material free of toxic substances.

Request commercial pricing

Tell us your quantity and requirements. Our team will confirm pricing, availability and delivery options.

Need help? Call UK Sales 0117 405 7580

The Electrolux 586295 ProThermetic Sprint Gas Tilting Braising Pan, 90lt, Hygienic Profile, Freestanding, external control panel comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Supply voltage: 230 V/1N ph/50/60 Hz

    Total Watts: 0.2 kW

  • Gas Power: 18 kW

  • Type of installation: FS on concrete base;FS on feet;On base;Standing against wall

  • Working Temperature MIN: 50 °C

    Working Temperature MAX: 250 °C

    Vessel (rectangle) width: 680 mm

    Vessel (rectangle) height: 237 mm

    Vessel (rectangle) depth: 558 mm

    External dimensions, Width: 1200 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Net weight: 240 kg

    Configuration: Rectangular;Tilting;With splashback

    Net vessel useful capacity: 75 lt

    Tilting mechanism: Automatic

    Double jacketed lid: TRUE

    Heating type: Direct
