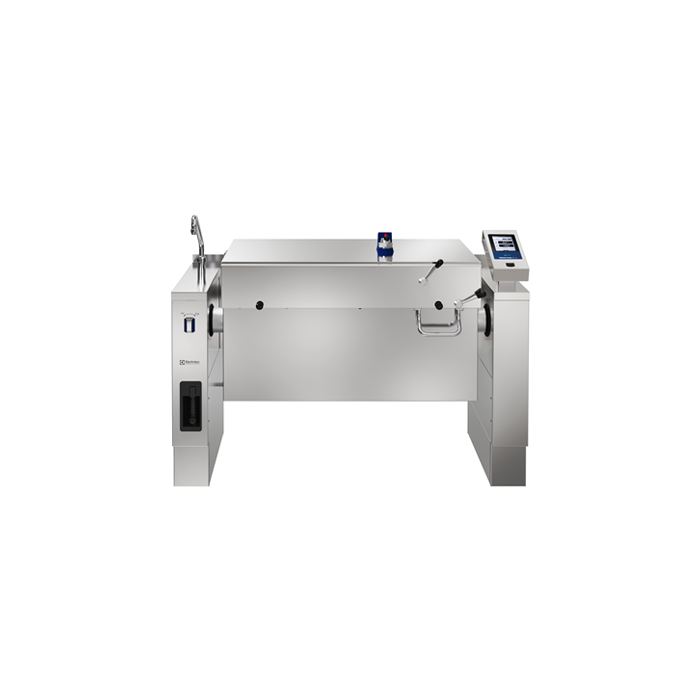

Electrolux 586292 ProThermetic Sprint Electric Tilting Pressure Braising Pan, 170lt Hygienic Profile, External control panel, Freestanding with CTS

lowest price 7dayhef

Product Features

Delivered with:- swivel arm with automatic hot/cold water filling- spray gun- rear closing panel
Multifunctional cooking appliance used for roasting, pot-roasting, braising, simmering, boiling and steaming.
Pan size is GN compliant.
"Pressure function": once the pressure lid is locked, the system automatically regulates itself.
Cooking with a working pressure of 0.45 bar reduces cooking times.
Safety valve on the lid avoids overpressure in the food compartment.
Core Temperature Sensor (CTS): multi-sensor food probe, 6 sensors, 0,5 °C accuracy, provides efficient temperature control. The power is supplied as and when required to keep the set temperature value without exceeding it and once reached, the food is ready to be served.
Motorized, variable pan tilting with "SOFT STOP". Tilting and pouring speeds can be precisely adjusted. Pan can be tilted over 90° to facilitate pouring and cleaning operations.
Easy to clean cooking surface due to large-radius edges and corners.
Thermoblock heating system for even temperature distribution and high temperature stability.
Optimum heat distribution in the food provides best cooking results in terms of taste, colour and consistency and in terms of vitamin preserving.
Pan bottom with two individually adjustable heating zones, each with a temperature sensor.
Built-in temperature sensor provides efficient temperature control: the power is supplied as and when required to keep the set temperature value without exceeding it.
No overshooting of cooking temperatures, fast reaction.
USB connection to easily update the software, upload/download recipes and download HACCP data.
Connectivity ready, to connected appliances from remote via cable and data monitoring, including HACCP (requires optional accessory).
IPX6 water resistant.
Multipurpose non-stick cooking surface in 18 mm thick compound: 3 mm shot-blasted 1.4404 (AISI 316L) stainless steel surface, seamlessly welded to 15 mm mild steel bottom.
15 mm thick heating layer concealed below the entire pan bottom, to provide high thermal diffusion and heat storage properties.
External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.
Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.
Heatproof handle with non-slip surface.
Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.
Pressure lid fitted with a proven fast-acting lock which is simple and safe in operation. Safety mechanism prevents lid from opening, even in case of voluntary attempt, when cooking under pressure.
Highly-visible and bright led TOUCH control panel features user-friendly icons and intuitive self-explanatory command options. Display visualizes: - Actual and set temperature - Set and remaining cooking time - Pre-heating phase (if activated) - GuideYou Panel (if activated) - Deferred start - Soft Function to reach the target temperature smoothly - 9 Power Control levels from simmering to fierce boiling - Pressure mode (in pressure models) - Stirrer ON/OFF settings (in round boiling models) - Error codes for quick trouble-shooting - Maintenance reminders
Possibility to store recipes in single or multiphase cooking process, with different temperature settings.
GuideYou Panel - activated by the user via settings — to easily follow the multiphase recipes, granting a proper and controlled cooking and a better appliance optimization.The system will provide maintenance reminders, in line with ESSENTIA program, helping the user to properly take care of the product, avoiding downtimes.
Both "Boiling" or "Braising" mode functions available.
Can be prearranged for energy optimisation or external surveillance systems (optional).
98% recyclable by weight; packaging material free of toxic substances.
lowest price 7dayhef

Description / Electrolux 586292 ProThermetic Sprint Electric Tilting Pressure Braising Pan, 170lt Hygienic Profile, External control panel, Freestanding with CTS

The Electrolux 586292 ProThermetic Sprint Electric Tilting Pressure Braising Pan, 170lt Hygienic Profile, External control panel, Freestanding with CTS comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3N ph/50/60 Hz

    Total Watts: 20.6 kW

  • Key Information

    Configuration: Rectangular;Tilting;With splashback

    Working Temperature MIN: 50 °C

    Working Temperature MAX: 250 °C

    Vessel (rectangle) width: 1050 mm

    Vessel (rectangle) height: 326 mm

    Vessel (rectangle) depth: 558 mm

    External dimensions, Width: 1600 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Net weight: 340 kg

    Net vessel useful capacity: 170 lt

    Tilting mechanism: Automatic

    Double jacketed lid: TRUE

    Heating type: Direct

  • Installation

    Type of installation: FS on concrete base;FS on feet;On base;Standing against wall

The Electrolux 586292 ProThermetic Sprint Electric Tilting Pressure Braising Pan, 170lt Hygienic Profile, External control panel, Freestanding with CTS is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
