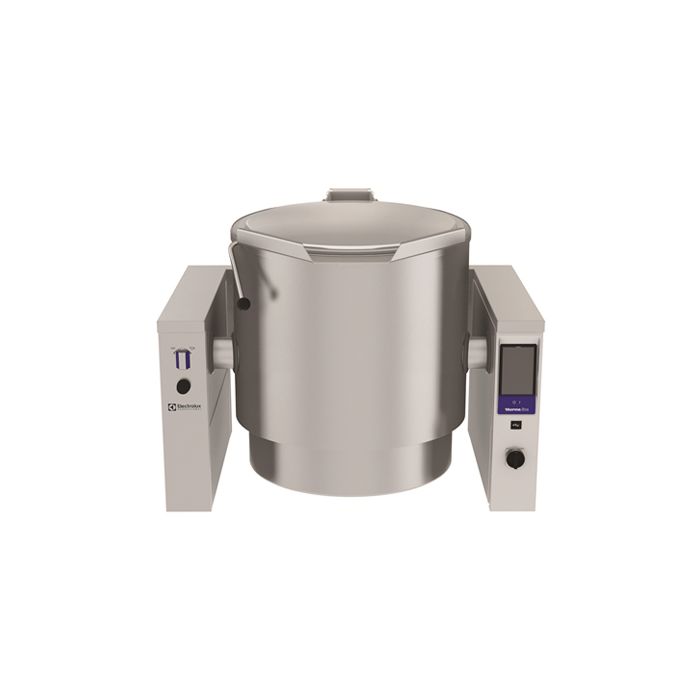

Electrolux 586039 High Productivity Cooking Electric Tilting Boiling Pan, 500lt Hygienic Profile, Freestanding with Stirrer

lowest price 7dayhef

Electric tilting Boiling Pan prearranged for stirrer 500lt (h), freestanding

Product Features


• Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory ‐ contact the Company for more details).
• Kettle is suitable to boil, steam, poach, braise or simmer all kinds of produce.
• Max pressure of inner jacket at 1,5 bar; minimum working pressure at 0.1 bar. Allows temperature control between 50 and 110°C.
• Kettle is jacketed up to 134 mm from upper rim.
• Isolated upper well rim avoids risk of harm for the user.
• IPX6 water resistant.
• Ergonomic vessel dimensions, with a large diameter and shallow depth facilitates stirring and gentle food handling.
• Edge of the large pouring lip can be equipped with a strainer (option).
• Motorized, variable pan tilting with "SOFT STOP". Tilting and pouring speeds can be precisely adjusted. Pan can be tilted over 90° to facilitate pouring and cleaning operations.
• Built in temperature sensor to precisely control the cooking process.
• USB connection to easily update the software, upload/download recipes and download HACCP data.
• Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar.
• External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.
• Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.
• Safety valve avoids overpressure of the steam in the double jacket.
• Stirrer with rotation speed of 22 RPMs.
• Safety thermostat protects against low water level in the double jacket.
• Water mixing tap is available as optional accessory to make water filling and pan cleaning easier.
• Ergonomic and user friendly thanks to the high tilting position and the pouring lip design which allow to easily fill containers.
• Front-mounted inclined led “TOUCH” control panel with recessed deep drawn casing, features self-explanatory display functions which guide operator throughout the cooking process: simultaneous display of actual and set temperature as well as set cooking time and remaining cooking time; real time clock; “SOFT” control for gentle heating up for delicate food; 9 power simmering levels from gentle to heavy boiling; timer for deferred start; error display for quick trouble-shooting.
• Possibility to store recipes in single or multiphase cooking process, with different temperature settings.
• Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.
• Can be prearranged for energy optimisation or external surveillance systems (optional).
• 98% recyclable by weight; packaging material free of toxic substances.
lowest price 7dayhef

Description / Electrolux 586039 High Productivity Cooking Electric Tilting Boiling Pan, 500lt Hygienic Profile, Freestanding with Stirrer

The Electrolux High Productivity Cooking Electric Tilting Boiling Pan, 500lt Hygienic Profile, Freestanding with Stirrer comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3N ph/50/60 Hz

    Total Watts: 48.6 kW

  • Key Information

    Configuration: Round, tilting, with stirrer

    Working Temperature MIN: 50 °C

    Working Temperature MAX: 110 °C

    Vessel (round) diameter: 900 mm

    Vessel (round) depth: 880 mm

    External dimensions, Width: 1500 mm

    External dimensions, Depth: 1000 mm

    External dimensions, Height: 700 mm

    Net weight: 560 kg

    Net vessel useful capacity: 500 lt

    Tilting mechanism: Automatic

    Double jacketed lid: ✓

    Heating type: Indirect

  • Installation

    Type of installation: FS on concrete base;FS on feet;On base;Standing against wall

Documents

The Electrolux High Productivity Cooking Electric Tilting Boiling Pan, 500lt Hygienic Profile, Freestanding with Stirrer is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.

More Information

Boiling Pan Capacity 500 Litres
