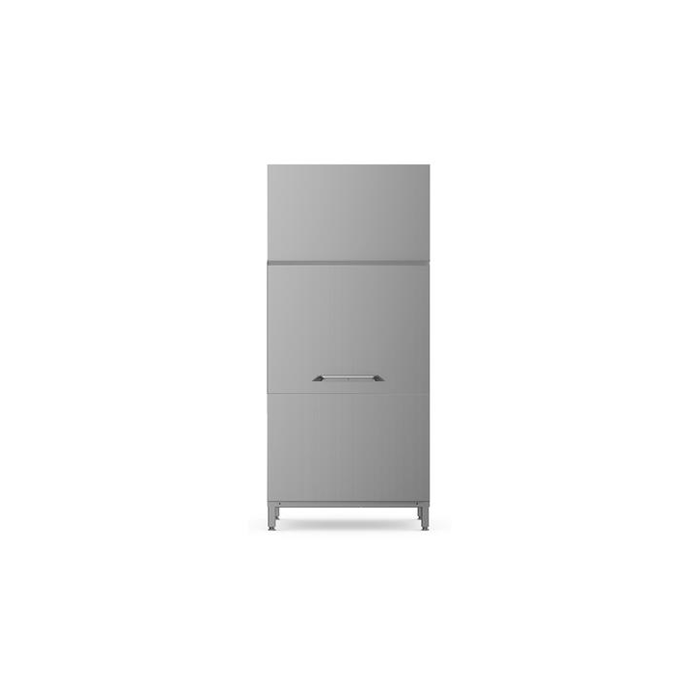

Electrolux 535144 Warewashing Large 35" dryer with door, boosted double fans, electric, for green&clean Multi Rinse Rack Type Dishwasher

Main Features

Adjustable feet for full access underneath the machine for cleaning.

Electronically controlled to optimize drying results.

Drying zone removes most of water from the crockery through a high powered fan that extracts dry air from outside mixing it with the internal air, thus providing dry plates at a temperature cool enough to handle safely.

IP25 protection against water jets, solid objects and small animals (larger than 6 mm).

The feeding direction can be either left to right or right to left as it's reversible on site.

Large counter balanced inspection door allows unrestricted all-round access to the internal area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.

Unit to be placed between multi-rinse rack type dishwasher and handling system.

Upper and lower fans to improve air flow, specific to dry reusables or plastic materials.

Construction

The chamber is pressed with fully rounded corners without internal pipes and therefore no hidden dirt traps.

All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels, door and rack transportation system.

The unit is built on modularity concept to easily connect with multi-rinse rack type dishwasher without any modification including power connection.

Request commercial pricing

Tell us your quantity and requirements. Our team will confirm pricing, availability and delivery options.

Need help? Call UK Sales 0117 405 7580

The Electrolux 535144 Warewashing Large 35" dryer with door, boosted double fans, electric, for green&clean Multi Rinse Rack Type Dishwasher comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Key Information

For transportation purpose only, the depth can be reduced to 795mm by removing the door handle.

Reference norm used to measure the noise: IEC60335-2-58 annex AA.

External dimensions, Width: 890 mm

External dimensions, Depth: 873 mm

External dimensions, Height: 2020 mm

Net weight: 148 kg

Shipping weight: 170 kg

Shipping height: 2240 mm

Shipping width: 1030 mm

Shipping depth: 910 mm

Shipping volume: 2.1 m³
Electric

Supply voltage: 380-415 V/3N ph/50 Hz

Default Installed Power: 8.7 kW
Sustainability

Noise level: <62 dBA

Documents

The Electrolux 535144 Warewashing Large 35" dryer with door, boosted double fans, electric, for green&clean Multi Rinse Rack Type Dishwasher is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
