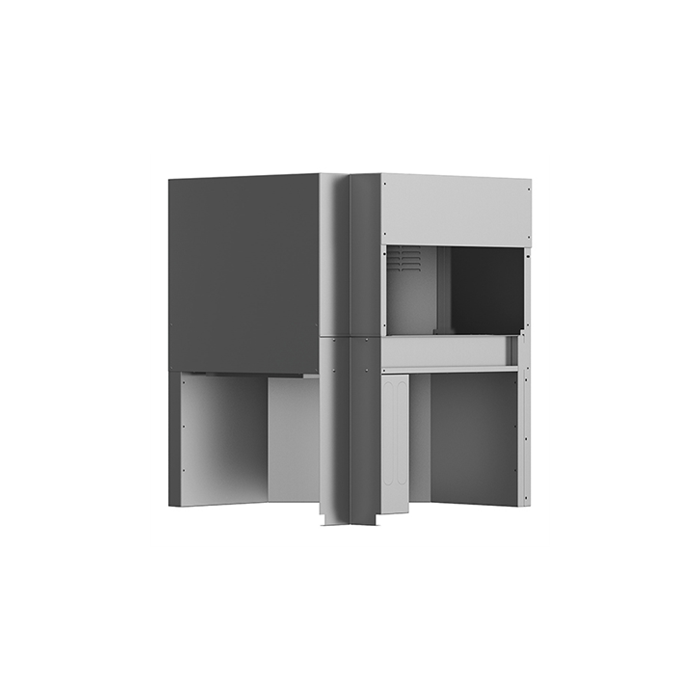

Electrolux 535140 Corner drying zone for green&clean Dual Rinse Rack Type Dishwasher, 60Hz - Marine

lowest price 7dayhef
Warewashing Corner drying zone for green&clean Dual Rinse Rack Type Dishwasher 60Hz (Marine)

Product Features

Electronically controlled to optimize drying results.
Full accessibility to the interior of the tunnel and hygienic design to facilitate cleaning.
Drying zone removes most of water from the crockery through a high powered fan that extracts dry air from outside mixing it with the internal air, thus providing dry plates at a temperature cool enough to handle safely.
Dryer must always be ordered with a 90° or 180° dishwashing driven curve.
IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
The feeding direction can be either left to right or right to left as it's reversible on site.
All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels and rack transportation system.
Unit to be placed between dual rinse rack type dishwasher and handling system.
The chamber is pressed with fully rounded corners without internal pipes and therefore no hidden dirt traps.
The unit is built on modularity concept to easily connect with dual rinse rack type dishwasher without any modification including power, inlet water, drain water, detergent and rinse aid connections.
lowest price 7dayhef

Description / Electrolux 535140 Corner drying zone for green&clean Dual Rinse Rack Type Dishwasher, 60Hz - Marine

The Electrolux 535140 Corner drying zone for green&clean Dual Rinse Rack Type Dishwasher, 60Hz - Marine comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 440 V/3 ph/60 Hz

    Default Installed Power: 8.5 kW

    Dryer heating elements: 8.25kW

    Drying fan power: 70°C

  • Dryer air flow: 750m3/h

    Dryer air temperature: 70°C

    External dimensions, Width: 872 mm

    External dimensions, Depth: 872 mm

    External dimensions, Height: 877 mm

    Net weight: 45 kg

    Shipping weight: 57 kg

    Shipping height: 1020 mm

    Shipping width: 930 mm

    Shipping depth: 940 mm

    Shipping volume: 0.89 m³

    Reference norm used to measure the noise: IEC60335-2-58 annex AA.

  • Noise level: <62 dBA

Documents

The Electrolux 535140 Corner drying zone for green&clean Dual Rinse Rack Type Dishwasher, 60Hz - Marine is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
