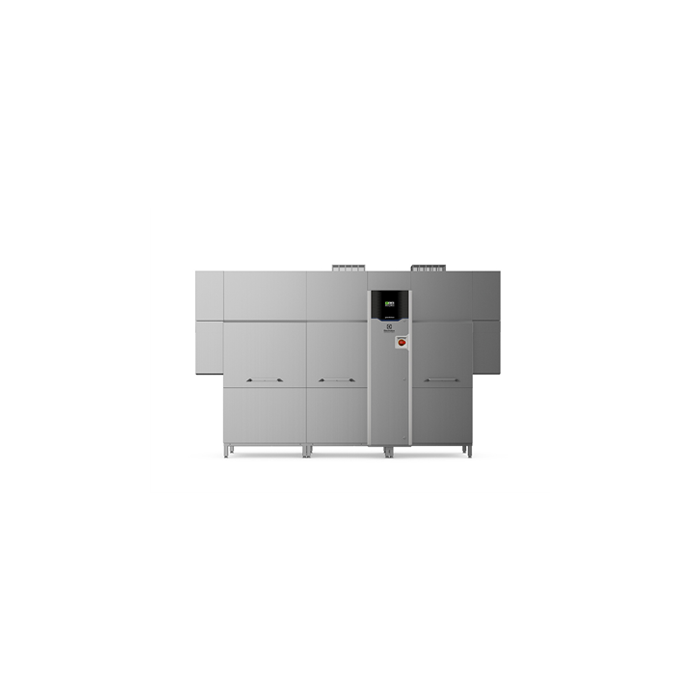

Electrolux 535011 Warewashing green&clean multi-rinse Rack Type, Ventless heat pump, ZERO LIME Device, electric, 250r/h,left>right

lowest price 7dayhef

Product Features

Adjustable feet for full access underneath the machine for cleaning.
Built-in WASH-SAFE CONTROL system raises water temperature to 85°C to sanitize the rinse water. No external boiler is required. Built-in air break and rinse booster pump ensure constant temperature and pressure throughout the rinsing cycle regardless of the inlet water condition.
Maximum Water Contact (MWC) wash arms are positioned along the full length of the wash tank.
Maximum capacity per hour of 250 racks easy to switch to DIN 10510 or NSF ANSI 3 compliant speed.
All internal components: wash and rinse arms, tank filters, curtains can be easily removed for cleaning.
CLEAR BLUE filtering system removes soil from the wash water providing cleaner water and highly active detergent thus ensuring better washing performance and lower running costs.
Unit equipped with USB port making it simple to read data such as machine identification, counters and consumption, components, devices and alarm logs. Machine parameters can be uploaded and downloaded and firmware updated.
Automatic drain, clean and sanitize cycles featured as standard. The internal chambers, including the internal doors are completely cleaned or sanitized avoiding bacteria proliferation for maximum hygiene and reducing manual work/time for operator.
Intuitive touch screen control panel features user-friendly display to easily operate the machine and to monitor machine status. Three different levels of interaction are available each show relevant messages and information to the operator, the general maintenance staff and the authorized service partners.
Multi-rinse arms in combination with double rinse tanks re-use final rinsing water in several phases to ensure hygiene and complete detergent removal on the washed wares.
Pre-wash section uses cold water so food remains are not "baked" onto the plates in order to have better pre-wash performance.
Automatic back-up mode is activated when a failure occurs. Guided troubleshooting for fast fixes including 300 precises notifications and 23 easy-to-follow processes.
Splashhoods at both entrance and exit avoid water spilling outside the machine.
Three conveyor speeds can be selected through the control panel by the operator and customized on site.
Built-in drain valve in the tanks allows automatic dump and fill to refresh the water in the tank without any interruption of the washing process.
IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
Self-draining wash pumps provide maximum hygiene and all wash and rinse zones drain automatically at the push of a button.
Large counter balanced inspection doors allow unrestricted all-round access to the wash and rinse area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.
Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt build up provides fast drainage in only a few minutes. Pressed wash tank with no welded points offer a guaranteed water tight solution.
Dishwasher structure is held together with a solid 50 x 50 mm stainless steel frame to provide long-term sturdiness.
All electric components are put in one IP65 central box isolated from water and steam to ensure high reliability.
Modularity design allows the machine not only be disassembled for delivery and re-assembled at customer‘s site, but also to be customized and upgraded on-site and over time.
External pre-arrangement for inlet water, drain water, detergent & rinse aid connections for fast and easy installation on both sides of the unit.
The unit is built on modularity concept for easy to add pre-wash, wash and up to 2 dryer modules onsite.
All main components made in heavy duty anti-corrosive 304 type stainless steel: external front, side panels and internal chambers, wash and rinse arms, doors and rack transportation system.
Table-to-table length, 2670mm.
lowest price 7dayhef

Description / Electrolux 535011 Warewashing green&clean multi-rinse Rack Type, Ventless heat pump, ZERO LIME Device, electric, 250r/h,left>right

The Electrolux 535011 Warewashing green&clean multi-rinse Rack Type, Ventless heat pump, ZERO LIME Device, electric, 250r/h,left>right comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 380-415 V/3N ph/50 Hz

    Default Installed Power: 27.4 kW

    Electrical power min: 20.8 kW

    When the machine runs at DIN 10510 compliant speed.

    Energy consumption: 21.9 kWh

    At average working conditions.

    Wash tank heating elements: 7 kW

    Triple tank heating elements: 3.5 kW

    Boiler heating elements: 7 kW

    Wash pump size: 1.5 kW

    Rinse pump size (final, duo, triple): 0.55 / 0.32 / 0.32 kW

  • Water

    Inlet water line size: G 3/4"

    Inlet cold water line size: G 3/4"

    Drain line size: 50mm

    Inlet water supply pressure: 2-6 bar

    Inlet water supply temperature (wash and rinse): 5 - 65°C

    The higher the temperature, the faster the warm-up.Recommended temperature: 50°C.

    Inlet water supply temperature (rinse and pre-wash): 5 - 30 °C

    Inlet water supply hardness: 0-14 °fH / 0-8°dH

    Flow rate of wash pump: 500 l/h

    When below 7°fH/4°dH special detergent and rinse aid are needed.

    Peak rate of drain flow: 1.8 l/s

    Wash tank size: 70 l

    Duo rinse tank size: 20 l

    Triple rinse tank size: 20 l

    Rinse water consumption:

  • Sustainability

    Rinse water consumption at max. speed: 100 l/h

    Noise level: <62 dBA

  • Key Information

    Productivity per hour (max. speed): 250 racks/4500dishes

    Productivity per hour (DIN compliant speed): 168 racks/3024 dishes

    Productivity per hour (NSF compliant speed): 150 racks/2700 dishes

    Wash Temperature: 55 - 65 °C

    Duo rinse temperature: 75-80 °C

    Final rinse temperature: 85 °C

    Triple rinse temperature: 70 - 75 °C

    External dimensions, Width: 3270 mm

    For transportation purpose only, the height can be reduced to 2000mm by adjusting the feet and removing the fan on the top.

    External dimensions, Depth: 895 mm

    For transportation purpose only, the depth can be reduced to 795mm by removing the control box and the door handles.

    External dimensions, Height: 2100 mm

    Height with door open: 2100 mm

    Charging hole size (width): 530 mm

    Charging hole size (height): 490 mm

    Net weight: 787 kg

    Shipping weight: 893 kg

    Shipping height: 2260 mm

    Shipping width: 1040 mm

    Shipping depth: 3440 mm

    Shipping volume: 8.09 m³sup3;

    Reference norm used to measure the noise: IEC60335-2-58 annex AA.

    Table to table distance: 3270 mm

  • Air Emission

    Air flow (top, exit): 700 / 0 m³sup3;/h

    Air temperature: 23.5 - 0 °C

    Air humidity (top, exit): 95 / 0 % r.h.

    The data is measured at exhaust points at 25°C and 60% r.h. ambient conditions, 18°C inlet water temperature and refer only to the machine.

    Latent heat: 3100 W

    Sensible heat: 3700 W

    According to VDI 2052, this model does not require any dedicated ventilation hood. General ventilation for the room should still be provided in accordance with UNI ISO EN 7730 norm, VDI 2052 guideline and DW/172 UK regulation or local regulations.

The Electrolux 535011 Warewashing green&clean multi-rinse Rack Type, Ventless heat pump, ZERO LIME Device, electric, 250r/h,left>right is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
