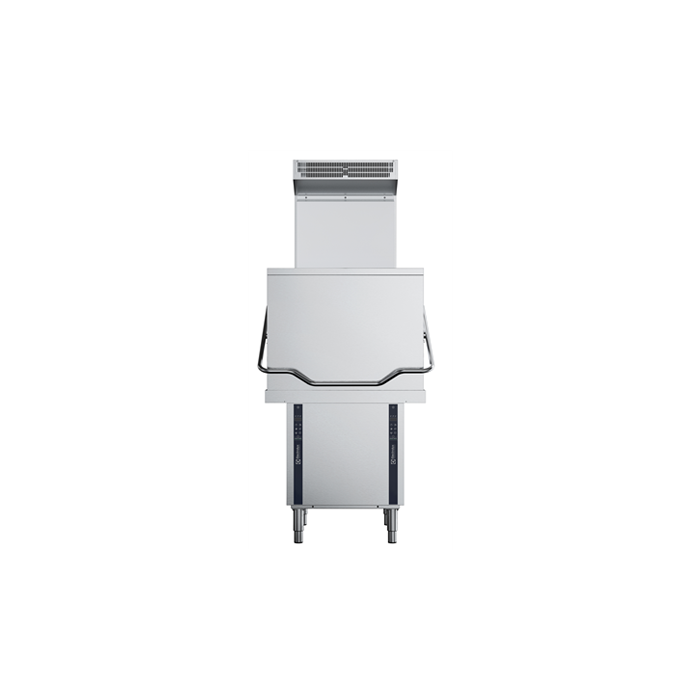

Electrolux 520529 Hood Type XL Utensil Washer with drain pump, detergent and rinse aid dispensers, Energy Saving Device (ESD), 60 b/h

lowest price 7dayhef
Warewashing Hood Type XL Utensil Washer, double skin manual hood, built-in detergent & rinse, ESD

Product Features

60/90/150 seconds cycles.
Field convertible from straight to corner operation.
Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
Maximum capacity per hour of 60 racks.
Equipped with specific stainless steel rack designed for perfect washing result on trays, boxes and containers.
The unit has pre-arranged wiring hardness for easy adapt the user interface on left or right position.
Pre-arranged to be connected using RS485 cable for on-site HACCP implementation and to an external gateway by means of the modbus protocol.
Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
Cycle may be interrupted at any time by lifting the hood.
Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.
Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
Three phase electrical connection, convertible to single phase on-site.
IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
Built-in atmospheric boiler sized to raise incoming water to a minimum of minimum 84 °C for sanitizing rinse. No external booster is required. Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure.
NSF/ANSI 3 and DIN 10512 compliant.
Incorporated drain pump to control water level in wash tank draining.
Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.
Prearranged for IoT via on-board communication port. Real-time data transfer of machine status, temperature, alarms, washing cycles performed, cleaning and sanitizing cycles and main diagnostic parameters.
Pressed tank in front position to facilitate cleaning.
Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.
Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.
Element protection from dry fire and low water.
Double skin hood supported by 4 springs to ensure smooth movement and guarantee operator safety.
Unit to include drain, detergent and rinse aid dispenser pumps
lowest price 7dayhef

Description / Electrolux 520529 Hood Type XL Utensil Washer with drain pump, detergent and rinse aid dispensers, Energy Saving Device (ESD), 60 b/h

The Electrolux 520529 Hood Type XL Utensil Washer with drain pump, detergent and rinse aid dispensers, Energy Saving Device (ESD), 60 b/h comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 380-415 V/3N ph/50 Hz

    Convertible to:

    Default Installed Power: 9.9 kW

    Boiler Heating Elements Power: 9 kW

    Tank heating elements: 3 kW

    Wash pump size: 0.8 kW

  • Water supply temperature*: 10-20 °C

    Water consumption per cycle (lt): 2.5

    Noise level: <63 dBA

  • Drain line size: 20.5mm

    Inlet water supply pressure: 0.5-7 bar

    Boiler Capacity (lt): 12

    Tank Capacity (lt): 24

  • N° of cycles: 3

    Duration cycle:* 60/90/150 sec.

    Wash temperature: 55-65 °C

    Wash temperature - NSF/ANSI 3 compliant: 75 °C

    Rinse temperature: 84 °C

    Rinse temperature - NSF/ ANSI 3 compliant: 86 °C

    External dimensions, Width: 990 mm

    External dimensions, Depth: 988 mm

    External dimensions, Height: 2273 mm

    Net weight: 182 kg

    Shipping weight: 162 kg

    Shipping weight (ESD): 36 kg

    Shipping height: 1720 mm

    Shipping width: 980 mm

    Shipping depth: 1040 mm

    Shipping volume: 1.75 m³

    Shipping volume (ESD): 0.33 m³

    Packaging size ESD (WxDxH): 730x930x480 mm

    Washing chamber, WxHxD: 840 / 440 / 560 mm

  • Air Flow: 28 m³/h

    Air temperature: 26 - 29 °C

    Air humidity: 55%

    * For ESD models, the inlet water supply to boiler will be 10-20°C.To maximize energy recovery, ESD will work extra 11 seconds at the end of rinsing
