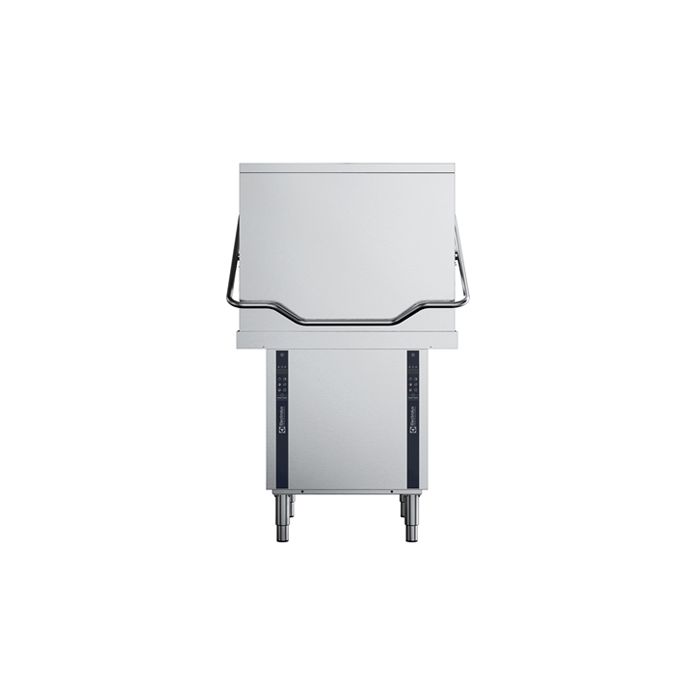

Electrolux 520517 Warewashing Hood type for Pots, Pans & Utensils, double skin manual hood

lowest price 7dayhef

Hood type for Pots, Pans & Utensils, with double skin manual hood, atmospheric boiler, drain pump, 60r/h

Product Features


• 60/90 seconds cycles.
• Pre-arranged to be connected using RS485 cable for on-site HACCP implementation and to an external gateway by means of the modbus protocol.
• The unit has pre-arranged wiring hardness for easy adapt the user interface on left or right position.
• Equipped with specific stainless steel rack designed for perfect washing result on trays, boxes and containers.
• Requires only 2.5 liters of water per washing cycle thus ensuring low energy, water, detergent and rinse aid consumption.
• Maximum capacity per hour of 60 racks.
• Built-in atmospheric boiler sized to raise incoming water to a minimum of 82 °C for sanitizing rinse. No external booster is required. Constant temperature of 82 °C throughout the rinsing cycle regardless of the network's water pressure.
• Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
• Field convertible from straight to corner operation.
• Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
• Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
• Cycle may be interrupted at any time by lifting the hood.
• Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
• Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.
• Three phase electrical connection, convertible to single phase on-site.
• IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
• Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.
• Single skin hood supported by 4 springs to ensure smooth movement and guarantee operator safety.
• Incorporated drain pump to control water level in wash tank draining.
• Prearranged for IoT via on-board communication port. Real-time data transfer of machine status, temperature, alarms, washing cycles performed, cleaning and sanitizing cycles and main diagnostic parameters.
• Pressed tank in front position to facilitate cleaning.
• Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.
• Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.
• Element protection from dry fire and low water.
lowest price 7dayhef

Description / Electrolux 520517 Warewashing Hood type for Pots, Pans & Utensils, double skin manual hood

The Electrolux Warewashing Hood type for Pots, Pans & Utensils, double skin manual hood comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 380-400 V/3N ph/50 Hz

    Convertible to: 230V 1N~; 230V 3~

    Default Installed Power: 9.9 kW

    Boiler Heating Elements Power: 9 kW

    Tank heating elements: 3 kW

    Wash pump size: 0.8 kW

  • Water

    Water supply temperature*: 10-65 °C

    Drain line size: 20.5 mm

    Inlet water supply pressure: 0.5-7 bar

    Water consumption per cycle (lt): 2.5

    Boiler Capacity (lt): 12

    Tank Capacity (lt): 24

  • Key Information

    N° of cycles: 2

    Duration cycle:* 60/90 sec.

    Wash temperature: 55-65 °C

    Rinse temperature: 82 °C

    External dimensions, Width: 990 mm

    External dimensions, Depth: 988 mm

    External dimensions, Height: 1567 mm

    Net weight: 135 kg

    Shipping weight: 161 kg

    Shipping height: 1770 mm

    Shipping width: 980 mm

    Shipping depth: 1040 mm

    Shipping volume: 1.8 m³

    Noise level: <68 dBA

Documents

The Electrolux Warewashing Hood type for Pots, Pans & Utensils, double skin manual hood is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
