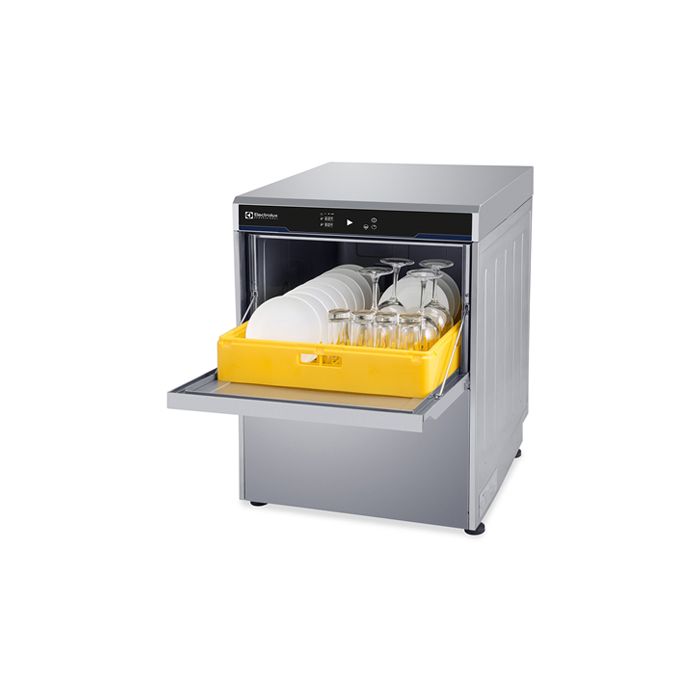

Electrolux 520486 Warewashing Undercounter, double skin, pressure boiler, drain pump, rinse aid & detergent dispenser-60Hz

lowest price 7dayhef

Undercounter Dishwasher, with double skin, pressure boiler, drain pump, rinse aid and detergent dispenser, 400V/3N/60Hz - Thermal label compliant

Product Features


• Utilizes fresh hot rinse water.
• Built-in detergent and rinse aid dispenser with automatic initial and continuous cycle loading for perfect results while minimizing service and maintenance needs.
• Plug-in designed with integrated drain pump, detergent and rinse aid dispensers for fast and easy installation.
• Triple layer filtering system having large tank filter with double layer strainer to keep water clean for a long time.
• An effective rinse system uses only 2.8 liters of clean hot water per basket for lower running costs.
• Few seconds (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items.
• 90/120/180 seconds cycle.
• Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82°C for sanitizing rinse. No external boiler is required.
• Washing capacity of 40 baskets or 720 dishes per hour.
• Digital read-out keeps operator informed as to temperatures.
• Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
• Low noise level.
• IPx4 water protection.
• Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.
• Internal cavity as well as exterior panels are all 304 series Stainless steel.
• Interchangeable wash/rinse arms screw out for simple clean up.
• Heavy duty Stainless steel construction.
• Element protection from dry fire and low water.
• Revolving wash/rinse arms above and below the basket.
lowest price 7dayhef

Description / Electrolux 520486 Warewashing Undercounter, double skin, pressure boiler, drain pump, rinse aid & detergent dispenser-60Hz

The Electrolux Warewashing Undercounter, double skin, pressure boiler, drain pump, rinse aid & detergent dispenser-60Hz comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3N ph/60 Hz

    Default Installed Power: 7.05 kW

    Boiler heating elements: 4.5 kW

    Tank heating elements: 2 kW

    Wash pump size: 0.55 kW

  • Water

    Pressure, bar min/max: 2-5 bar

    Water supply temperature*: 10-60 °C

    Drain line size: 22mm

    Inlet Water supply pressure: 29 - 73 psi (2 - 5 bar)

    Washing tank capacity (lt): 16

    Water consumption per cycle (lt): 2.8

    Boiler Capacity (lt): 5.5

  • Key Information

    Baskets per hour*: 40

    Dishes per hour: 720

    Working cycles time (sec.): 90/120/180

    Wash temperature: 71-77°C

    Cell dimensions - width: 500 mm

    Cell dimensions - depth: 500 mm

    Cell dimensions - height: 310 mm

    Rinse temperature: 80-90 °C

    External dimensions, Width: 600 mm

    External dimensions, Depth: 600 mm

    External dimensions, Height: 840 mm

    Packaging size (WxDxH): 710x710x1000 mm

    Noise level: <70 dBA

Documents

The Electrolux Warewashing Undercounter, double skin, pressure boiler, drain pump, rinse aid & detergent dispenser-60Hz is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
