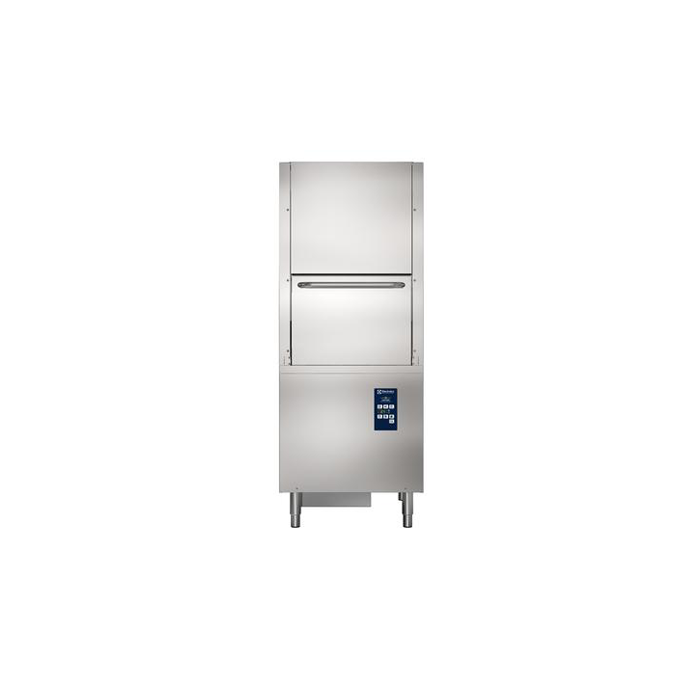

Electrolux 506086 Warewashing Compact Pot & Pan Washer with Drain Pump & Detergent Dispenser, High Opening

Electrolux Professional 506086

Main Features

Atmospheric insulated boiler combined with the rinse booster pump for perfect rinsing results (water temperature and pressure always constant during rinsing cycles), independent from the inlet water pressure.
Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.
Open air gap in compliance with WRC regulations.
4 washing programs (one program is continual).
Equipped with drain pump and built-in detergent dispenser for easy and quick installation without opening the machine.
Easier access to the washing chamber thanks to the 180° frontal opening door.
Requires limited space for opening thanks to the door divided in 2 sections.
Self-cleaning cycle.
Low noise level.
Simple electronic control panel.
Fault auto-diagnosis system.
Simple service from the front.
Available upon request, pre-arranged model for HACCP implementation (both basic as well as integrated system).

Sustainability

Double skin insulated door to reduce heat dispersion.
Pre-arranged to be connected to Energy Management device.

Construction

304 stainless steel boiler with higher welding protection to increase resistance to corrosion.
External connecting board protected by a waterproof plastic box.
Unit to feature smooth surfaces to facilitate cleaning.
Easy to remove pump and tank filters.
Large strainer box above the water surface for frequent cleaning operations.
Equipped with side washing arms in addition to upper and lower wash arms.
304 AISI stainless steel front and side panels, wash tank, tank filter and wash and rinse arms.
Unit to feature rinse aid dispenser pump.
finance avalible kitchen applience 7dayhef

The Electrolux 506086 Warewashing Compact Pot & Pan Washer with Drain Pump & Detergent Dispenser, High Opening comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Supply voltage: 380-415 V/3N ph/50 Hz

    Electrical power, max: 19 kW

    Default Installed Power: 12 kW

    Wash pump power: 2.7 kW

  • Rinsing water consumption (per cycle): 4.7 lt

    Washing cycle temperature: 55-65 °C

    Hot rinse cycle temperature: 84 °C

    Cell dimensions - width: 589 mm

    Cell dimensions - depth: 710 mm

    Cell dimensions - height: 740 mm

    External dimensions, Width: 775 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 1992 mm

    Net weight: 217 kg

    Shipping weight: 244 kg

    Shipping height: 2245 mm

    Shipping width: 1035 mm

    Shipping depth: 925 mm

    Shipping volume: 2.15 m³

    N° of working cycles: 4

    Dimension (W x H x D) 90 / 180 / 360 / infin.

  • Pressure, min-max: 0.5-7 bar

    Washing cycle electrical elements: 7 kW

    Hot rinse cycle duration (sec.): 14

    Water supply temperature*: 50 °C

    Washing tank capacity (lt): 84

    Boiler Capacity (lt): 12

Documents

The Electrolux 506086 Warewashing Compact Pot & Pan Washer with Drain Pump & Detergent Dispenser, High Opening is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
