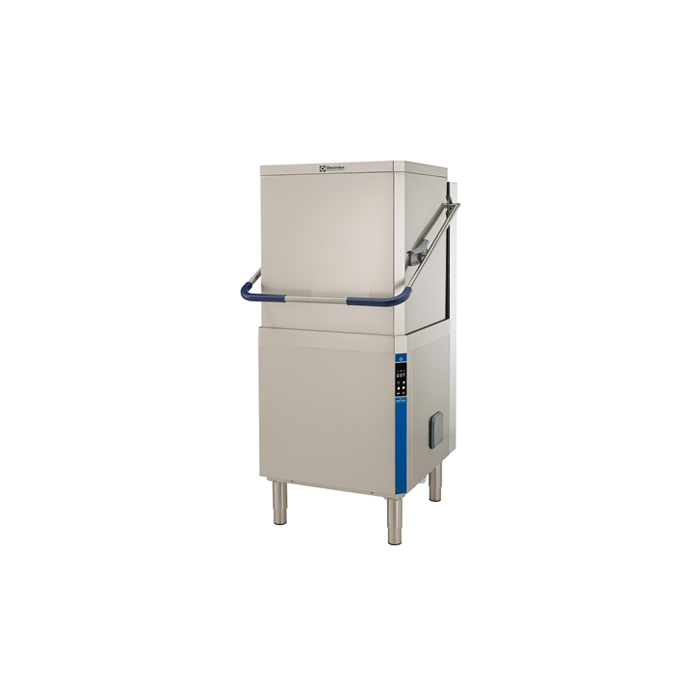

Electrolux 504264 Hood Type Dishwasher, with double skin insulated manual hood, Wash Safe Control, CLEAR BLUE Filtering System, built-in rinse aid dispenser and drain pump, 80r/h - USPH - marine

lowest price 7dayhef
Warewashing green&clean hood type Marine Dishwasher, 80 b/h, Clear Blue Filter, Drain pump - Marine

Product Features

45/84/150 seconds cycles (High productivity mode); 57/84/150 seconds cycles (NSF/ANSI 3 mode).
IPX5 water protection.
Maximum capacity per hour of 80 racks or 1.440 dishes (High productivity mode) easy to switch to 63 racks or 1.134 dishes (NSF/ANSI 3 mode) by pressing a button.
NSF/ANSI 3 and DIN 10512 compliant.
CLEAR BLUE advanced filtering system provides cleaner wash water and higher active detergent thus ensuring better washing performances and lower running costs.
Built-in atmospheric boiler sized to raise incoming water to a minimum of minimum 84 °C for sanitizing rinse. No external booster is required. Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure.
Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
Incorporated Soft Start feature to offer additional protection to more delicate items.
Slanted wash arms and sloped ceiling to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
Cycle may be interrupted at any time by lifting the hood.
Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
Built-in rinse aid dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.
Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.
Pressed tank in front position to facilitate cleaning.
Double skin insulated hood.
Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.
Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.
Pre-arranged for on-site HACCP implementation and Energy Management device.
Element protection from dry fire and low water.
Unit to include drain pump and rinse aid dispenser pump.
lowest price 7dayhef

Description / Electrolux 504264 Hood Type Dishwasher, with double skin insulated manual hood, Wash Safe Control, CLEAR BLUE Filtering System, built-in rinse aid dispenser and drain pump, 80r/h - USPH - marine

The Electrolux 504264 Hood Type Dishwasher, with double skin insulated manual hood, Wash Safe Control, CLEAR BLUE Filtering System, built-in rinse aid dispenser and drain pump, 80r/h - USPH - marine comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3 ph/50 Hz

    Convertible to:

    Default Installed Power: 9.9 kW

    Boiler Heating Elements Power: 9 kW

    Boiler Reducible To:* 6 kW

    Tank heating elements: 3 kW

  • Water supply temperature*: 10-65 °C

    Water consumption per cycle (lt): 2

    Noise level: <63 dBA

  • Drain line size: 20.5mm

    Inlet water supply pressure: 0.5-7 bar

    Boiler Capacity (lt): 12

    Tank Capacity (lt): 24

  • N° of cycles: 3

    Duration cycle:* 45/84/150 sec.

    Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.

    Racks per hour:* 80

    Racks per hour - NSF/ANSI 3 compliant: 63

    Dishes per hour:* 1440

    Dishes per hour - NSF/ANSI 3 compliant: 1134

    Wash temperature: 55-65 °C

    Wash temperature - NSF/ANSI 3 compliant: 75 °C

    Rinse temperature: 84 °C

    External dimensions, Width: 752 mm

    External dimensions, Depth: 755 mm

    External dimensions, Height: 1567 mm

    Net weight: 117 kg

    Shipping weight: 139 kg

    Shipping volume: 1.23 m³

    Packaging size

    (WxDxH): 752x755x1567 mm


    * According to market standard, the productivity is declared at an inlet water supply temperature of 50°C . If the water is supplied at 65°C, the power can be reduced by 3 kW without any loss in productivity.


    NOTE:
    If the water supply temperature is less than 50°C, it is necessary to request higher power to maintain productivity.

  • Latent heat: 500 W

    Sensible heat: 2000 W

Documents

The Electrolux 504264 Hood Type Dishwasher, with double skin insulated manual hood, Wash Safe Control, CLEAR BLUE Filtering System, built-in rinse aid dispenser and drain pump, 80r/h - USPH - marine is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
