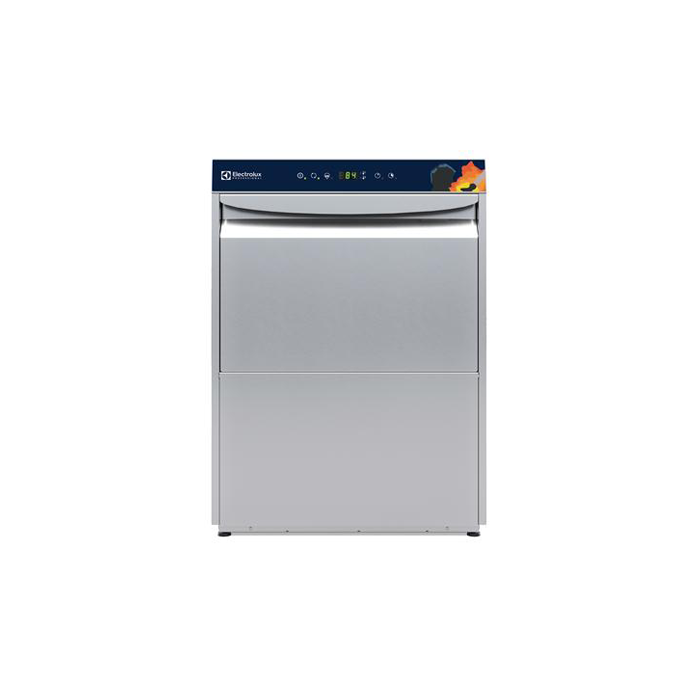

Electrolux 502756 Warewashing Undercounter Dish for Personal Protective Equipment, WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, Fire Brigade

Main Features

Incorporated Soft Start feature to offer additional protection to more delicate items.
Solid double skinned counter-balance door with hurt-free handle fully in stainless steel.
Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
Simple service from the front.
Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.
Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.
Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.
Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
Three phase or single phase electrical connection, convertible on-site.
State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
Low noise level.
4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.
Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure and temperature.
Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.
IPx4 water protection.
Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
Digital read-out keeps operator informed as to temperatures.

Sustainability

Unit to feature drain pump, rinse aid and detergent dispenser pumps.
Pre-arrangement for HACCP system implementation and Energy Management device.

Construction

304 stainless steel boiler with higher welding protection to increase resistance to corrosion.
Front panel, door, wash tank, tank filters, wash arms and rinse arms made in heavy duty anti-corrosive 304 AISI stainless steel.
Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.
Completely closed on the back by a cover plate.
PVC water supply hose with metal connections resistant to high water pressure.
Unit to feature smooth surfaces to facilitate cleaning.
Element protection from dry fire and low water.
The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.
Incorporated drain pump to control water level in wash tank draining.
Interchangeable wash/rinse arms screw out for simple clean up.
Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.

Request commercial pricing

Tell us your quantity and requirements. Our team will confirm pricing, availability and delivery options.

Need help? Call UK Sales 0117 405 7580

The Electrolux 502756 Warewashing Undercounter Dish for Personal Protective Equipment, WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, Fire Brigade comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Supply voltage: 400 V/3N ph/50 Hz

    Convertible to: 230V 3~; 230V 1N~

    Default Installed Power: 5.35 kW

    Boiler heating elements: 4,5 kW

    Tank heating elements: 2 kW

    Wash pump size: 0.736 kW

  • Wash temperature: 54°C

    Cell dimensions - width: 500 mm

    Cell dimensions - depth: 500 mm

    Cell dimensions - height: 335 mm

    Rinse temperature: 54 °C

    External dimensions, Width: 600 mm

    External dimensions, Depth: 615 mm

    External dimensions, Height: 820 mm

    Packaging size(WxDxH): 740x670x1020 mm

    Baskets per hour: 40

    Dishes per hour: 720

    Program Cycle time: 300/480/720

  • Noise level: 61 dBA

  • Pressure, min-max: 0.5-7 bar

    Water supply temperature*: 50 °C

    Drain line size: 20.5mm

    Inlet Water supply pressure: 7 - 102 psi (0.5 - 7 bar)

    Washing tank capacity (lt): 23

    Water consumption per cycle (lt): 0 / 2.5

    Boiler Capacity (lt): 12

Documents

The Electrolux 502756 Warewashing Undercounter Dish for Personal Protective Equipment, WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, Fire Brigade is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
