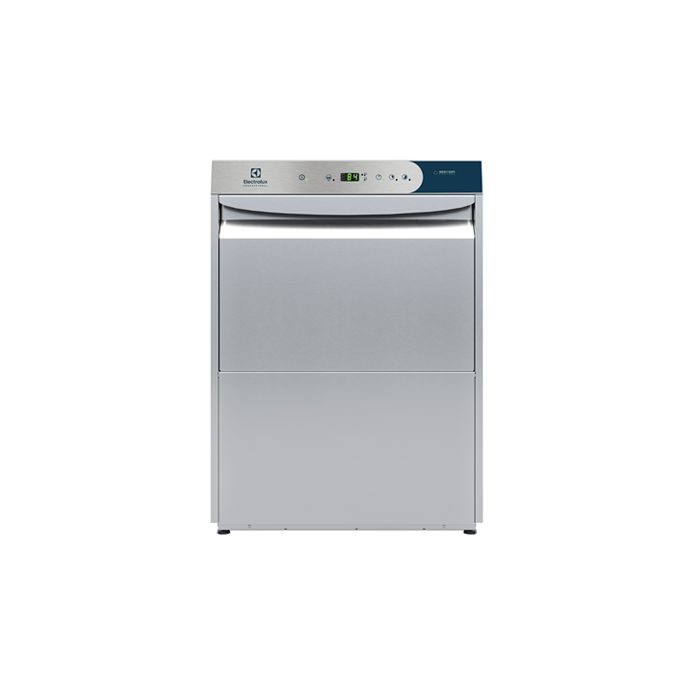

Electrolux 502743 Warewashing Undercounter WSC, double skin, drain pump, detergent & rinse aid dispensers, 720d/h

lowest price 7dayhef

Undercounter Dishwasher with WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, 3 phase, 720d/h

Product Features


• Incorporated Soft Start feature to offer additional protection to more delicate items.
• An effective rinse system uses only 2,5 litres of clean hot water per basket for lower running costs.
• Solid double skinned counter-balance door with hurt-free handle fully in stainless steel.
• Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
• Constant temperature of 85 °C thoughout the rinsing cycle regardless of the network's water pressure and temperature.
• Pre-arrangement for HACCP system implementation and Energy Management device.
• Simple service from the front.
• Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.
• Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.
• Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.
• Washing capacity of 40 baskets or 720 dishes per hour.
• Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
• Three phase or single phase electrical connection, convertible on-site.
• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
• Low noise level.
• IPx4 water protection.
• 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
• Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
• Digital read-out keeps operator informed as to temperatures.
• Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.
• High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.
• Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
• Completely closed on the back by a cover plate.
• Front panel, door, wash tank, tank filters, wash arms and rinse arms made in heavy duty anti-corrosive 304 AISI stainless steel.
• Unit to feature drain pump, rinse aid and detergent dispenser pumps.
• Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.
• Element protection from dry fire and low water.
• Revolving Stainless steel wash/rinse arms above and below the basket.
• PVC water supply hose with metal connections resistant to high water pressure.
• 304 stainless steel boiler with higher welding protection to increase resistance to corrosion.
• Incorporated drain pump to control water level in wash tank draining.
• Unit to feature smooth surfaces to facilitate cleaning.
• Interchangeable wash/rinse arms screw out for simple clean up.
• Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.
• The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.
lowest price 7dayhef

Description / Electrolux 502743 Warewashing Undercounter WSC, double skin, drain pump, detergent & rinse aid dispensers, 720d/h

The Electrolux Warewashing Undercounter WSC, double skin, drain pump, detergent & rinse aid dispensers, 720d/h comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3N ph/50 Hz

    Convertible to: 230V 3~; 230V 1N~

    Default Installed Power: 5.35 kW

    Boiler heating elements: 4,5 kW

    Tank heating elements: 2 kW

    Wash pump size: 0.736 kW

  • Water

    Pressure, bar min/max: 0.5-7 bar

    Water supply temperature*: 50 °C

    Drain line size: 20.5mm

    Inlet Water supply pressure: 7 - 102 psi (0.5 - 7 bar)

    Washing tank capacity (lt): 23

    Water consumption per cycle (lt): 2.5

    Boiler Capacity (lt): 12

  • Key Information

    Baskets per hour*: 40

    Dishes per hour: 720

    Working cycles time (sec.): 90/120/240

    Wash temperature: 55-65°C

    Cell dimensions - width: 500 mm

    Cell dimensions - depth: 500 mm

    Cell dimensions - height: 335 mm

    Rinse temperature: 85 °C

    External dimensions, Width: 600 mm

    External dimensions, Depth: 615 mm

    External dimensions, Height: 820 mm

    Packaging size

    (WxDxH): 690x620x920 mm

    Noise level: 61 dBA

Documents

The Electrolux Warewashing Undercounter WSC, double skin, drain pump, detergent & rinse aid dispensers, 720d/h is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
