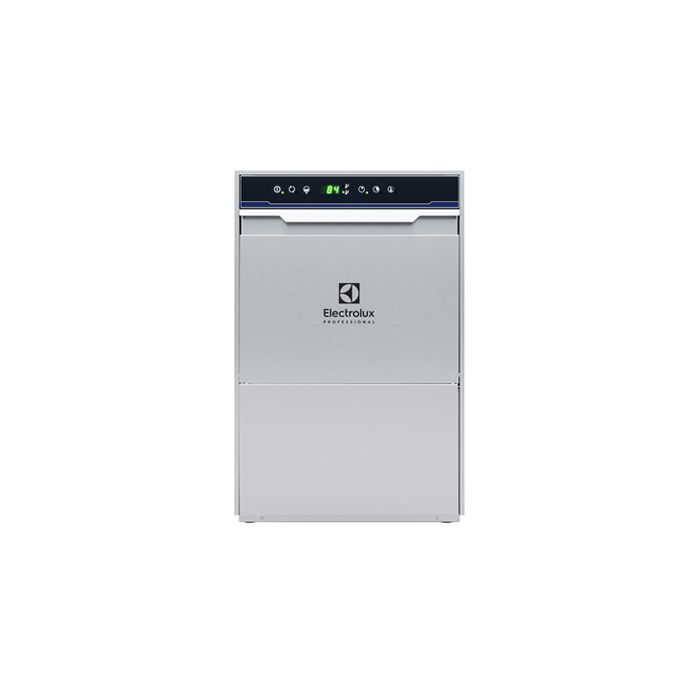

Electrolux 402319 Warewashing Small Double Skin Glasswasher with Drain Pump, Detergent Dispenser and Cold Rinse, 60B/H 3 Cycles wi

lowest price 7dayhef

Glasswasher (small) with drain pump, detergent dispenser and cold rinse, multi-rack support, rinse booster pump, 3 cycles, 60b/h - Australia

Product Features


• Incorporated Soft Start feature to offer additional protection to more delicate items.
• Provided with a double rack support allowing the use of 400x400 mm or 14”x14” (365x365 mm) racks.
• 60/120/66 seconds cycle, the third cycle includes cold rinse.
• Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82°C for sanitizing rinse. No external boiler is required.
• Washing system endowed with rotating washing arms from both top and bottom, high powered wash pump and large capacity wash tank guarantee professional washing.
• Maximum capacity of 60 racks per hour.
• New electronic control panel for easy setup of the working parameters and self diagnosis.
• Easy service access to main components without moving the unit.
• Pre-rinse/cold rinse cycle provides double function: either as pre-rinse, used before starting the cycle to remove the heaviest residues from the wares, or as cold rinse at the end of the cycle to cool down beer and wine glasses.
• Low noise level.
• Equipped with drain pump for easy and quick installation without opening the machine.
• Adjustable feet for full access underneath the machine for cleaning.
• Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.
• Internal elements (arms and filter) easily extractable.
• Wash/rinse arms and nozzles in stainless steel.
• Completely closed on the back by a cover plate.
• 304 AISI stainless steel front panel, load bearing frame, wash tank, tank filter, wash and rinse arms.
• Unit to feature smooth surfaces to facilitate cleaning.
• Unit to feature rinse aid and detergent dispenser pumps.
• Finished in top quality materials to ensure durability.
• Double skin door construction preserves heat inside the tank to lower energy consumption and the noise. Counter-balance mechanism minimizes impact when opening and closing.
• Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt buildup, provides fast drainage in just a few minutes. With no welding points the pressed tank offers a guaranteed water tight solution.
lowest price 7dayhef

Description / Electrolux 402319 Warewashing Small Double Skin Glasswasher with Drain Pump, Detergent Dispenser and Cold Rinse, 60B/H 3 Cycles wi

The Electrolux Warewashing Small Double Skin Glasswasher with Drain Pump, Detergent Dispenser and Cold Rinse, 60B/H 3 Cycles wi comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 220-240 V/1 ph/50 Hz

    Default Installed Power: 3.3 kW

    Tank heating elements: 0.8 kW

  • Water

    Pressure, bar min/max: 1.8-3 bar

    Water supply temperature*: 10-65 °C

    Inlet Water supply pressure: 26 - 44 psi (1.8 - 3 bar)

    Washing tank capacity (lt): 6

    Boiler Capacity (lt): 5

    Incoming water line size: G 3/4"

    Hot rinse cycle duration (sec.): 16

    Min hot rinse water consumption (lt/cycle)**: 2.3

  • Key Information

    Washing cycle temperature: 55-65 °C

    Hot rinse cycle temperature: 80-90 °C

    Baskets per hour*: 60

    Working cycles time (sec.): 60/120/66

    N° of working cycles: 3 (60/120/66)

    Cell dimensions - width: 400 mm

    Cell dimensions - depth: 400 mm

    Cell dimensions - height: 290 mm

    External dimensions, Width: 460 mm

    External dimensions, Depth: 565 mm

    External dimensions, Height: 820 mm

    Net weight: 37 kg

    Shipping weight: 48 kg

    Shipping height: 900 mm

    Shipping width: 620 mm

    Shipping depth: 520 mm

    Shipping volume: 0.29 m³

    Noise level: 69 dBA

    The claimed noise level is measured according to EN 60335-2-58 (Annex ZAA) / ISO 11204.

    The claimed capacity is measured when the unit is connected to hot inlet water of 65°C; if the inlet water is cold, the cycle time could be longer.

Documents

The Electrolux Warewashing Small Double Skin Glasswasher with Drain Pump, Detergent Dispenser and Cold Rinse, 60B/H 3 Cycles wi is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
