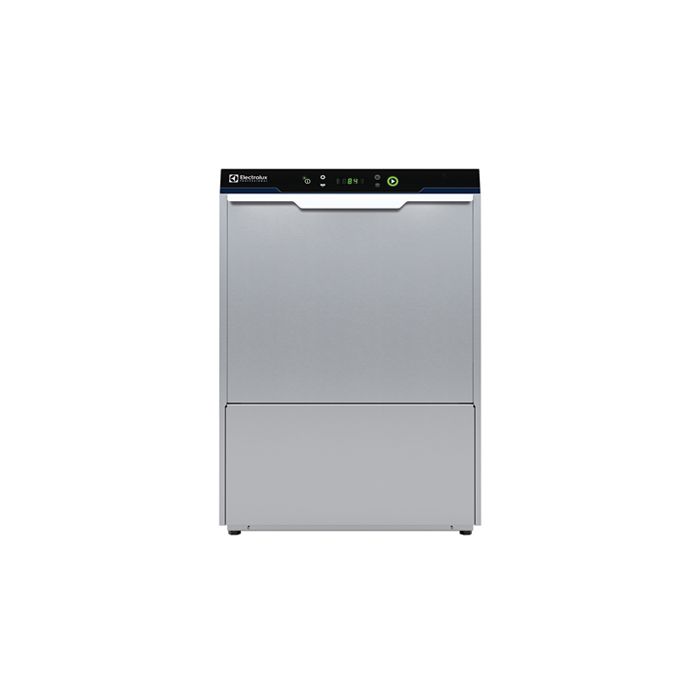

Electrolux 402314 Undercounter Dishwasher for 600x400mm trays, double skin, atmospheric boiler, water softener, 30bas

lowest price 7dayhef

Undercounter Dishwasher for 600x400 mm trays, with double skin, atmospheric boiler, drain pump, detergent dispenser and water softener, capacity per hour of 30 baskets or 540 dishes or 120 trays

Product Features


• A pause of a few seconds after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
• Washing capacity of 30 baskets per hour.
• Built-in atmospheric boiler sized to raise incoming water to 84 °C minimum for sanitizing rinse. No external booster is required.
• Equipped with water softener to ensure optimal rinsing results.
• Equipped with drain pump for easy and quick installation without opening the machine.
• Electronic control panel with temperature display to easily operate and monitor machine status.
• Large washing chamber is suitable for both 500x500 mm standard baskets and 600x500 mm baskets to wash 600x400 mm trays.
• Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
• Built-in atmospheric boiler with rinse booster pump to provide constant water temperature and pressure for rinsing, independent from water inlet.
• Simple service from the front.
• Easy to remove wash/rinse arms for cleaning.
• Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.
• Three phase or single phase electrical connection, convertible on-site.
• Low noise level.
• Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.
• Completely closed on the back by a cover plate.
• Unit to feature smooth surfaces to facilitate cleaning.
• Unit to feature rinse aid and detergent dispenser pumps.
• Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.
• Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.
• Insulated double skin door construction preserves heat inside the tank to lower energy consumption and the noise. Counter-balance mechanism minimizes impact when opening and closing.
• Front panel, door, wash tank, tank filters, wash arms and rinse arms made in heavy duty anti-corrosive 304 AISI stainless steel.
lowest price 7dayhef

Description / Electrolux 402314 Undercounter Dishwasher for 600x400mm trays, double skin, atmospheric boiler, water softener, 30bas

The Electrolux Warewashing Warewashing Undercounter for 600x400mm trays, double skin, atmospheric boiler, water softener, 30bas comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 380-415 V/3N ph/50 Hz

    Default Installed Power: 6.65 kW

    Boiler heating elements: 6 kW

    Tank heating elements: 2.4 kW

    Wash pump size: 0.68 kW

  • Water

    Pressure, bar min/max: 1-6 bar

    Water supply temperature*: 10-50 °C

    Drain line size: 29mm

    Inlet Water supply pressure: 15 - 87 psi (1 - 6 bar)

    Washing tank capacity (lt): 22

    Water consumption per cycle (lt): 2.2

    Boiler Capacity (lt): 5.5

  • Key Information

    Baskets per hour*: 30

    Dishes per hour: 540

    Working cycles time (sec.): 120/180/360/540

    Wash temperature: 55-65°C

    Cell dimensions - width: 500 mm

    Cell dimensions - depth: 600 mm

    Cell dimensions - height: 410 mm

    Rinse temperature: 85 °C

    External dimensions, Width: 600 mm

    External dimensions, Depth: 703 mm

    External dimensions, Height: 850 mm

    Packaging size

    (WxDxH): 700x790x1000 mm

    Noise level: 61,3 dBA

Documents

The Electrolux Warewashing Warewashing Undercounter for 600x400mm trays, double skin, atmospheric boiler, water softener, 30bas is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
