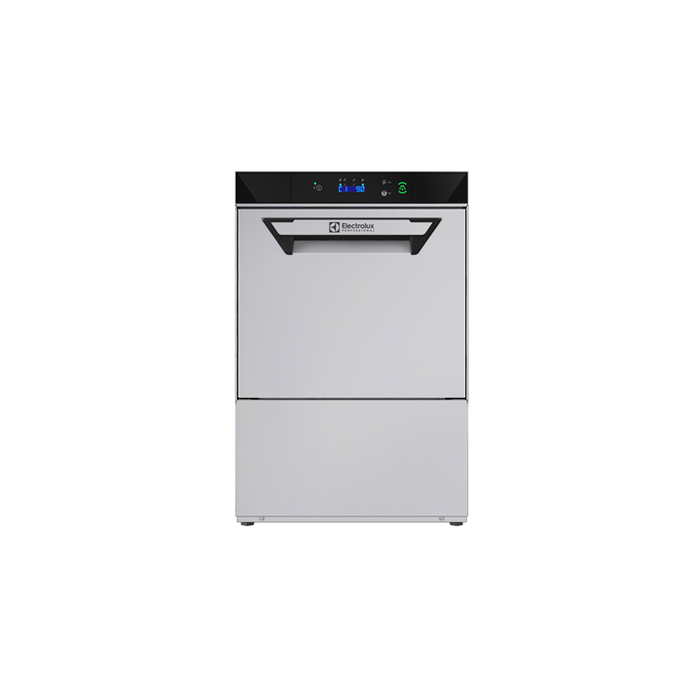

Electrolux 402188 Warewashing NeoBlue Touch S Small Single Skin Glasswasher, rinse aid and detergent pump, tank filter, 40r/h

lowest price 7dayhef

Product Features

Wash tank with rounded corners, sloped towards the drain to prevent dirt build up provides fast drainage in only a few minutes and guaranteed water tight solution.
Maximum capacity of 40 racks per hour.
Suitable to fit 400*400 mm racks.
Simple operation control panel with digital display, led info lights; and color-coded main button to launch the washing cycles.
Featured with n°4 washing cycle, 90 / 120 / 180 / 540 seconds, selectable by the display and customizable on site by service; to wash different kind of crockery.
Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82°C for sanitizing rinse. No external boiler is required.
Washing system endowed with rotating washing arms, high powered wash pump and large capacity wash tank for professional washing.
Built-in rinse aid and detergent dispenser with automatic chemicals loading, for perfect result while minimizing service and maintenance needs.
Equipped with drain pump, to easily adjust the discharge height in case of wall plumbing; avoiding wastewater returns.
Equipped with electrical cable fitting schuko plug.
Easy service access to all the main components from the front of the appliance, to fast on site operation.
Structure, panels, cavity and door in stainless steel to long lasting.
Insulated double skin counter-balanced door construction for silent and smooth operation. Counter-balance mechanism minimizes impact when opening and closing.
Completely closed on the back by a cover plate.
Upper and lower screwed washing & rinsing arms and tank filters in composite material; are easy removable from the cavity to easy operation.
Unit to feature rinse aid and detergent dispenser peristaltic pumps.
lowest price 7dayhef

Description / Electrolux 402188 Warewashing NeoBlue Touch S Small Single Skin Glasswasher, rinse aid and detergent pump, tank filter, 40r/h

The Electrolux 402188 Warewashing NeoBlue Touch S Small Single Skin Glasswasher, rinse aid and detergent pump, tank filter, 40r/h comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 220-240 V/1 ph/50 Hz

    Default Installed Power: 2.7 kW

    Boiler heating elements: 2.7 kW

    Tank heating elements: 2.4 kW

    Wash pump size: 0.2 kW

  • Water

    Pressure, bar min/max: 2-5 bar

    Water supply temperature*: 10-50 °C

    Drain line size: 29mm

    Washing tank capacity (lt): 12

    Water consumption per cycle (lt): 0 / 2

    Boiler Capacity (lt): 3

    Incoming water line size: 3/4"

  • Key Information

    Wash temperature: 60°C

    Cell dimensions - width: 405 mm

    Cell dimensions - depth: 437 mm

    Cell dimensions - height: 315 mm

    Rinse temperature: 85 °C

    External dimensions, Width: 455 mm

    External dimensions, Depth: 550 mm

    External dimensions, Height: 700 mm

    Net weight: 38 kg

    Shipping weight: 42 kg

    Shipping height: 850 mm

    Shipping width: 540 mm

    Shipping depth: 630 mm

    Shipping volume: 0.29 m³sup3;

    Baskets per hour*: 40 / 30 / 20 / 6

    Working cycles time (sec.): 90 / 120 / 180 / 540

    Dishes per hour: 720 / 540 / 360 / 108

  • Sustainability

    Noise level: 61 dBA

The Electrolux 402188 Warewashing NeoBlue Touch S Small Single Skin Glasswasher, rinse aid and detergent pump, tank filter, 40r/h is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
