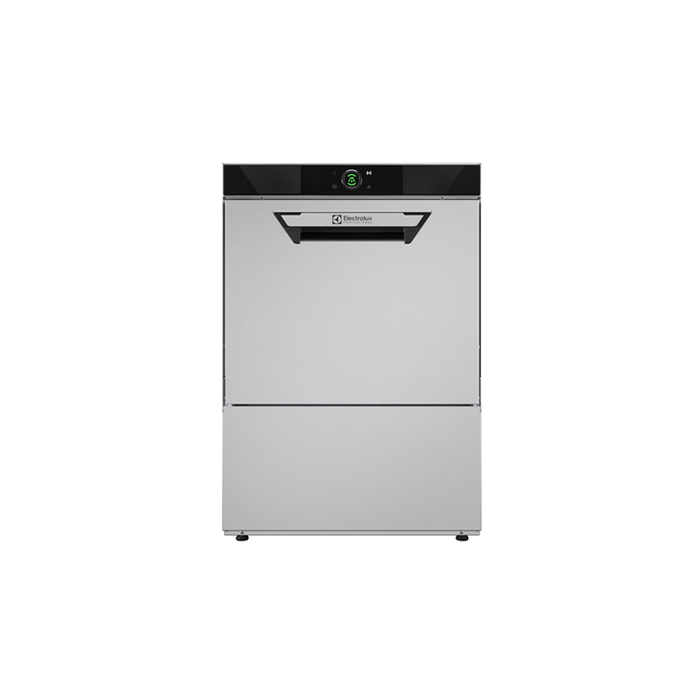

Electrolux 400313 Warewashing NeoBlue Touch Undercounter Dishwasher (L) with pressure boiler, rinse aid+detergent pumps, drain pump, tank filters, max 65 r/h, 3ph

lowest price 7dayhef

Product Features

Built-in pressure boiler sized to raise incoming 55-65 °C water to guarantee the right rinsing temperature for sanitizing rinse. No external booster is required.
The single piece upper & lower arms clip-on type, interchangeable, easy to remove & reinstall. The combined washing & rinsing spraying system guarantees extended water coverage inside the chamber for excellent washing performance.
The pump filter inside the tank protects the washing pump by soil penetration with its extended surface, keeping the washing water clean.
App allows on-site customization of the washing cycles, as well as adjusting chemicals dosage. It provides on time feedback of the appliance and alarm info.
Touch button user interface provide useful information using different colours reflecting appliance status; and LED icons.
Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
Smooth opening for easy loading.
An effective rinse system uses only 2.1/2.4 liters of clean hot water per basket for lower running costs.
Washing system endowed with rotating integrated washing & rinsing arms in composite material, high powered wash pump and large capacity boiler for professional washing.
4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.
Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
Simple service from the front for technical purpose, by top for electronic boards; by lower panel for main components.
Max. theoretical washing capacity in ideal condition of 65 racks or 1170 dishes per hour, with fast cycle available on APP (from January 2025).
IPx4 water protection.
Three phase or single phase electrical connection, convertible on-site.
Front and side panels, door and wash tank made in heavy duty anti-corrosive AISI 304 stainless steel.
304 stainless steel boiler with higher welding protection to increase resistance to corrosion.
The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.
Large wash tank with round corners and no pipes to avoid dirt built-up.
Element protection from dry fire and low water.
Double skin insulated door.
Light & thicker moulded tank filters in composite material prolong the cleanliness of the water, collecting the major part of the soil; that can be easily removed during operations.
Completely closed on the back by a cover plate.
Unit to feature smooth surfaces to facilitate cleaning.
Incorporated drain pump to control water level in wash tank draining.
PVC water supply hose with metal connections resistant to high water pressure.
Unit to feature rinse aid and detergent dispenser pumps.
lowest price 7dayhef

Description / Electrolux 400313 Warewashing NeoBlue Touch Undercounter Dishwasher (L) with pressure boiler, rinse aid+detergent pumps, drain pump, tank filters, max 65 r/h, 3ph

The Electrolux 400313 Warewashing NeoBlue Touch Undercounter DW (L) with pressure boiler, rinse aid+detergent pumps, drain pump, tank filters, max 65 r/h, 3ph comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 380-415 V/3N ph/50 Hz

    Convertible to: 230V 3~; 230V 1N~

    Default Installed Power: 5 kW

    Boiler heating elements: 4,5 kW

    Tank heating elements: 2 kW

    Wash pump size: 0.55 kW

  • Water

    Pressure, bar min/max: 2-5 bar

    Water supply temperature*: 55-65 °C

    Drain line size: 20.5mm

    Inlet Water supply pressure: 29 - 73 psi (2 - 5 bar)

    Washing tank capacity (lt): 22

    Water consumption per cycle (lt): 2.1 / 2.4

    Boiler Capacity (lt): 5,8

  • Key Information

    Baskets per hour (fast*/glasses*/multipurpose&cups/intensive*/MyEco): 65 / 40 / 36 / 24 / 15

    *only available on App by Jan 2025

    Working cycles time (sec.): 55 / 90 / 100 / 150 / 240

    Dishes per hour: 1170 / 720 / 648 / 432 / 270

    Wash temperature: 55-65°C

    Cell dimensions - width: 520 mm

    Cell dimensions - depth: 540 mm

    Cell dimensions - height: 400 mm

    Rinse temperature: 60-85 °C

    External dimensions, Width: 572 mm

    External dimensions, Depth: 623 mm

    External dimensions, Height: 830 mm

    Packaging size(WxDxH): 740x670x1000 mm

  • Sustainability

    Noise level: <70 dBA

    Package type: Box on pallet

  • Performance table (norm EN IEC 63136:2019)

    Tested wash cycle: myEco

    Energy consumption for initial fill (Es), kWh: 1.37

    Water consumption for initial fill (Vs), l: 21.5

    Start-up time (Ts), sec.: 2165

    Number of plates per rack: 18

    Cleaning performance (xclean), %: 99

    Resoiling performance (xres): 0.3

    Average energy consumption (Ec), kWh: 0.26

    Average water consumption (Vc), l: 2.1

    Average cycle time (Tc), sec.: 447

    Power ready-to-use mode (Pu), kW: 0.19

The Electrolux 400313 Warewashing NeoBlue Touch Undercounter DW (L) with pressure boiler, rinse aid+detergent pumps, drain pump, tank filters, max 65 r/h, 3ph is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
