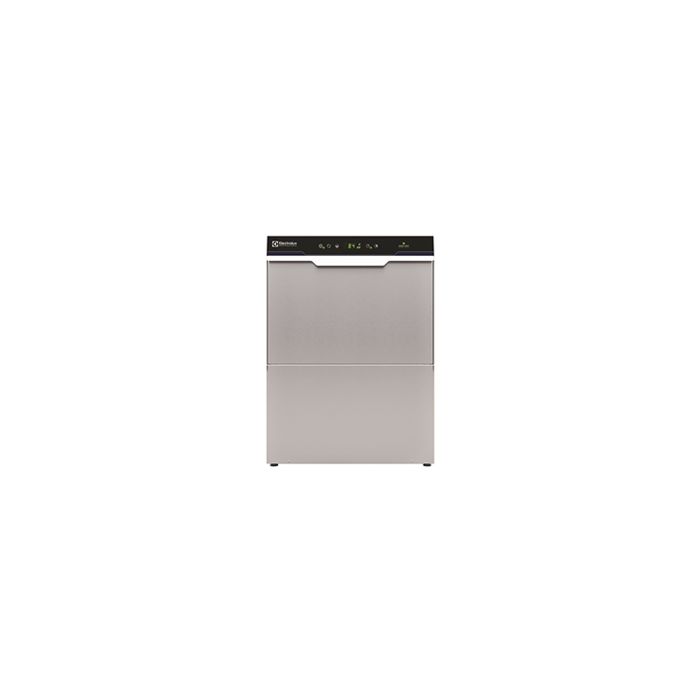

The Electrolux Warewashing Undercounter WSC, single skin, drain pump & rinse aid dispenser, 720d/h, Schuko Plug comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

• Electric

  Supply voltage: 230 V/1 ph/50 Hz

  Convertible to:

  Default Installed Power: 3.65 kW

  Boiler heating elements: 2,8 kW

  Tank heating elements: 2 kW

  Wash pump size: 0.736 kW

• Water

  Pressure, bar min/max: 0.5-7 bar

  Water supply temperature*: 50 °C

  Drain line size: 40 mm

  Inlet Water supply pressure: 7 - 102 psi (0.5 - 7 bar)

  Washing tank capacity (lt): 33

  Water consumption per cycle (lt): 3

  Boiler Capacity (lt): 5,8

• Key Information

  Baskets per hour*: 40

  Dishes per hour: 720

  Working cycles time (sec.): 90/120/240

  Wash temperature: 55-65°C

  Cell dimensions - width: 500 mm

  Cell dimensions - depth: 500 mm

  Cell dimensions - height: 330 mm

  Rinse temperature: 84 °C

  External dimensions, Width: 600 mm

  External dimensions, Depth: 648 mm

  External dimensions, Height: 820 mm

  Packaging size

  (WxDxH): 740x670x1020 mm

  Noise level: <70 dBA

Documents

• CAD Drawings 400261
  (151,09 KB)
• Data Sheet Undercounter WSC, single skin, drain pump & rinse aid dispenser, 720d/h, Schuko Plug
  (890,44 KB)
• BIM/Revit 400261
  (424 KB)

The Electrolux Warewashing Undercounter WSC, single skin, drain pump & rinse aid dispenser, 720d/h, Schuko Plug is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
