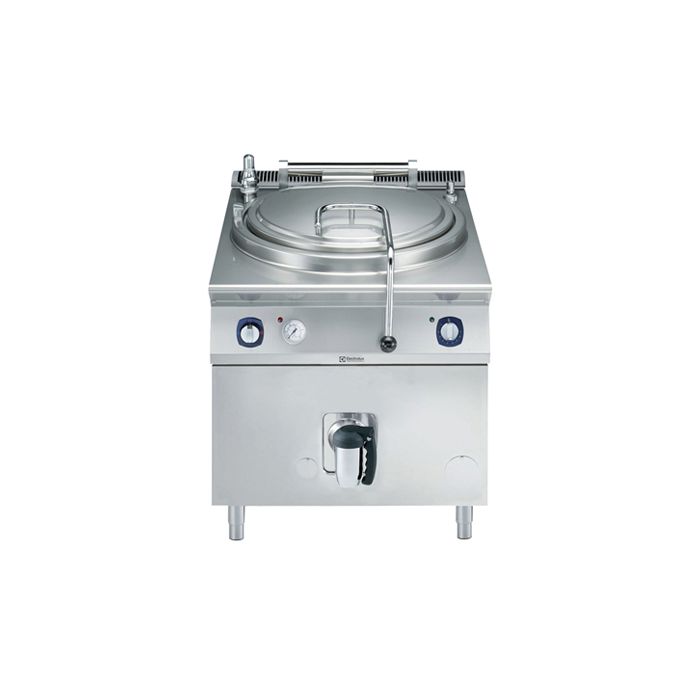

Electrolux 391615 Modular Cooking Range Line 900XP Gas Cylindrical Boiling Pan 150lt indirect heat, automatic refill (60Hz)

lowest price 7dayhef

150-lt gas Boiling Pan with pressure switch, indirect heating

Product Features


• Minimum load for correct funtioning is 20 liters.
• Round kettle is suitable to cook, sauté or poach all kinds of produce.
• Produce is uniformly heated in the base and side walls of the kettle by an indirect heating system that uses integrally generated saturated steam at a temperature of 110° C in the jacket.
• External valve allows to manually evacuate excess air accumulated in the jacket during heating phase.
• Appliance is IPX5 water resistance certified.
• Manometer allows to correctly control the functioning of the pan.
• Energy regulation through a control knob.
• Safety thermostat protects against low water level.
• Safety valve avoids overpressure of the steam in the jacket.
• No overshooting of cooking temperatures, fast reaction.
• Large capacity food tap enables safe and effortless discharging of contents.
• Firmly fitting cover to reduce cooking time and save energy costs.
• Ergonomic: the depth of the vessel facilitates stirring the food, also the most delicate food.
• Discharge tube and tap are very easy to clean from outside.
• Closed heating system ‐ no waste of energy.
• Electrovalve automatically refills vessel with water.
• Smooth large surfaces, easy access for cleaning.
• Pressure switch control monitors energy and water consumption.
• The special design of the control knob system guarantees against water infiltration.
• Q Mark model delivered with nozzles for G30-50 mbar.
• Kettle shall be double jacketed including high quality thermal insulation of the pan, saving energy and keeping ambient temperature low.
• Pressed cooking vessel and double jacket in 316 AISI Stainless steel.
• Robust burners in stainless steel with flame failure device, protected pilot light and optimized combustion.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
lowest price 7dayhef

Description / Electrolux 391615 Modular Cooking Range Line 900XP Gas Cylindrical Boiling Pan 150lt indirect heat, automatic refill (60Hz)

The Electrolux Modular Cooking Range Line 900XP Gas Cylindrical Boiling Pan 150lt indirect heat, automatic refill (60Hz) comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.

Specifications

  • Electric

    Supply voltage: 220-230 V/1 ph/60 Hz

    Total Watts: 0.1 kW

  • Gas

    Gas Power: 24 kW

    Standard gas delivery: G30 ‐ 50 mbar

    Gas Type Option: G31 37 mbar

    Gas Inlet: 1/2"

  • Key Information

    Pan useful capacity: 143 lt

    Vessel (round) diameter: 600 mm

    Net weight: 135 kg

    Shipping weight: 142 kg

    Shipping height: 1180 mm

    Shipping width: 880 mm

    Shipping depth: 1140 mm

    Shipping volume: 1.18 m³

    No clearance needed on rear sides of unit if wall is of non combustible type. If wall is combustible, minimum 50 mm wall clearance should be maintained.

    Certification group: N9PIG

Documents

The Electrolux Modular Cooking Range Line 900XP Gas Cylindrical Boiling Pan 150lt indirect heat, automatic refill (60Hz) is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.

More Information

Boiling Pan Capacity 150 Litres
