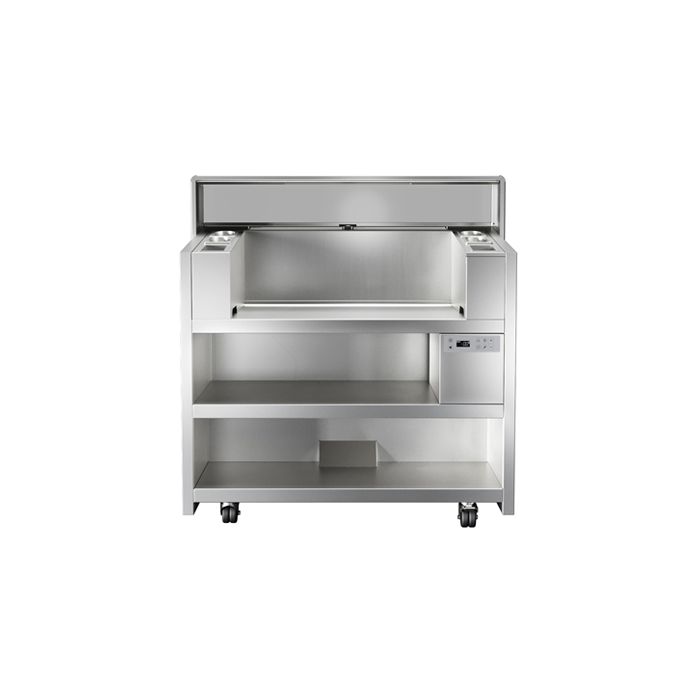

Electrolux 351081 LiberoPro LiberoPro Point for 2 3PH Units
LiberoPro Point Mobile Counter, suitable for 2 LiberoPro Line appliances with two 1-phase and two 3-phase sockets
Product Features
• Can be combined with up to two tabletop appliances LiberoPro HP 3PHASE and/or LiberoPro 1PHASE (Plug Type Schuko): flat induction hobs, induction woks, induction griddles.
• Compact, lightweight and easy to move.
• Plate holder shelf coupled with tempered glass and lighting for a better visibility from guest side.
• Designed for LiberoPro Duo function for automatic regulation of fan speed according to cooking intensity. Can be activated exclusively with LiberoPro stand alone units.
• LiberoPro Fresh is a low noise air filtration system to absorb efficiently grease particles and bad odours in the working area. It is a 2-stage filtering system with stainless steel fat filters and ceramic activated carbon ones.
• 30 lt neutral drawer - accepting N° 1 GN1/1 - is available as optional accessory.
• Through the user interface with soft touch buttons the operator can.
• vary the 4 fan speed;
• switch on the LED lighting system of the cooking area;
• display indications on maintenance operations (e.g. on filters) or any anomalous operating conditions.
• Heavy duty AISI 304 Stainless steel construction.
• Mounted on 4 swivelling wheels with brakes on the 2 front wheels (on the operator side).
• Frontal panel in AISI 304 can be customized requiring a special execution.
• Grease and odours filters are easily accessible and removable from operator's side for efficient maintanance without any tool.
• Side support frames each holding n.2 GN 1/9 containers and n.1 tools holder. All included in the standard delivery and easily removable for better cleanability.
• Plug type: IEC/EN 60309-1/2 - 32 amps.
• IPx4 water protection.
Description / Electrolux 351081 LiberoPro LiberoPro Point for 2 3PH Units
The Electrolux LiberoPro LiberoPro Point for 2 3PH Units comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional and Zanussi Professional brands are renowned for their range of equipment.
Specifications
- Electric
Supply voltage: 380-415 V/3N ph/50/60 Hz
Electrical power max.: 15 kW
Plug type: IEC/EN 60309-1/2
- Key Information
External dimensions, Width: 1231 mm
External dimensions, Depth: 788 mm
External dimensions, Height: 1284 mm
Net weight: 155 kg
Suitable Appliances
Frontal power sockets available for Plug-in Units: 2 x 3 Phase Plugs (Plug type IEC/EN 60309-1/2) + 2 x 1 Phase Plugs (Plug Type Schuko)
Documents
- Brochures
LiberoPro brochure
(4,99 MB) - CAD Drawings 351081
(426,19 KB) - Data Sheet LiberoPro Point for 2 3PH Units
(596,29 KB) - User Maintenance
User maintenance guide of LiberoPro Point
(610,07 KB) - BIM/Revit 351081
(932 KB) - User Manuals 351081
(889,68 KB)
The Electrolux LiberoPro LiberoPro Point for 2 3PH Units is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
