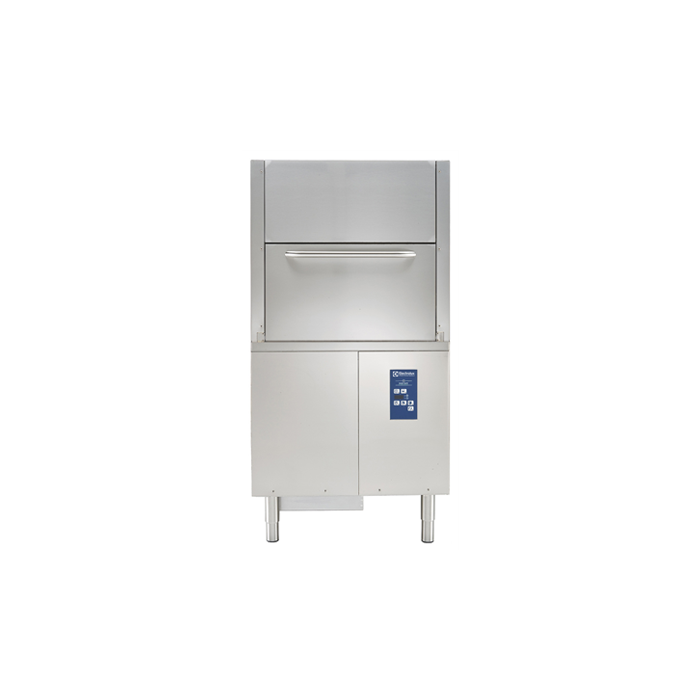

Electrolux 190AQJ Electric Pot&Pan Washer with electronic control, detergent and rinse aid dispenser - 50Hz - Marine

lowest price 7dayhef
Warewashing Pot & Pan Washer with Drain Pump & Detergent Dispenser (Marine)

Product Features

Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
Equipped with drain pump and built-in detergent dispenser for easy and quick installation without opening the machine.
Simple service from the front.
Atmospheric insulated boiler combined with the rinse booster pump for perfect rinsing results (water temperature and pressure always constant during rinsing cycles), independent from the inlet water pressure.
Open air gap in compliance with WRC regulations.
4 washing programs (one program is continual).
Simple electronic control panel.
Requires limited space for opening thanks to the door divided in 2 sections.
Self-cleaning cycle.
Easier access to the washing chamber thanks to the 180° frontal opening door.
Low noise level.
High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.
Fault auto-diagnosis system.
Large strainer box above the water surface for frequent cleaning operations.
Double skin insulated door to reduce heat dispersion.
Equipped with side washing arms in addition to upper and lower wash arms.
Pre-arranged to be connected to Energy Management device.
Easy to remove pump and tank filters.
External connecting board protected by a waterproof plastic box.
304 AISI stainless steel front and side panels, wash tank, tank filter and wash and rinse arms.
Unit to feature smooth surfaces to facilitate cleaning.
304 stainless steel boiler with higher welding protection to increase resistance to corrosion.
Unit to feature rinse aid dispenser pump.
lowest price 7dayhef

Description / Electrolux 190AQJ Electric Pot&Pan Washer with electronic control, detergent and rinse aid dispenser - 50Hz - Marine

The Electrolux 190AQJ Electric Pot&Pan Washer with electronic control, detergent and rinse aid dispenser - 50Hz - Marine comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

  • Electric

    Supply voltage: 400 V/3 ph/50 Hz

    Default Installed Power: 13 kW

    Electrical power max.: 20 kW

    Wash pump power: 2.5 kW

  • Pressure, bar min/max: 0.5-7 bar

    Washing tank capacity (lt): 95

    Boiler Capacity (lt): 18

    Washing cycle electrical elements: 7 kW

    Hot rinse cycle duration (sec.): ISO 9001; ISO 14001

  • Water supply temperature*: 50 °C

    Rinsing water consumption (per cycle): 7 lt

  • Washing cycle temperature: 55-65 °C

    Hot rinse cycle temperature: 84 °C

    N° of working cycles: 4 (180/360/540/inf)

    Cell dimensions - width: 670 mm

    Cell dimensions - depth: 710 mm

    Cell dimensions - height: 570 mm

    External dimensions, Width: 876 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 1791 mm

    Net weight: 200 kg

    Shipping weight: 244 kg

    Shipping height: 2030 mm

    Shipping width: 1010 mm

    Shipping depth: 1020 mm

    Shipping volume: 2.09 m³

Documents

The Electrolux 190AQJ Electric Pot&Pan Washer with electronic control, detergent and rinse aid dispenser - 50Hz - Marine is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
