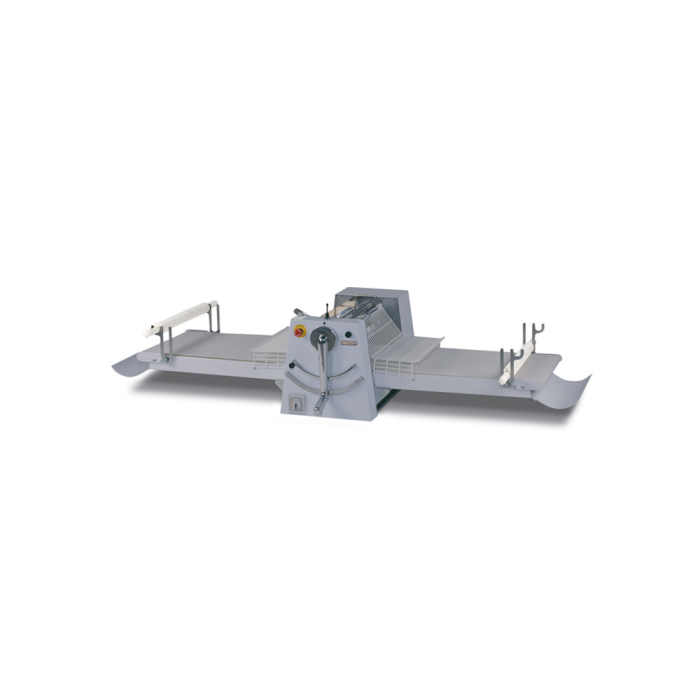

Dito Sama 601105 Dough Sheeter, table standing belt - 500 mm
Flour container fixed on the top of the machine.
Safety grids hinged to the structure, equipped with a safety micro-switch against injury.
Motor stops if gratings are raised to a dangerous level.
Emergency stop button with lock and manual re-start to ensure cylinder halt for added operator safety.
General electrical protection by fuses.
Motor protected by a circuit breaker.
Remote foot pedal to change rolling direction, available as optional accessory.
Designed for table top installations.
Belt entry feeding speed of 12.2 m/min and exit feeding speed of 22.5 m/min.
60 mm diameter cylinders may be regulated for sheets ranging from 0,1 to 34 mm in thickness.
Upper and lower roller scrapers easily removable for cleaning
Slides can be raised to save space and the belts can be removed for washing.
Chromium plated steel rollers.
Description / Dito Sama 601105 Dough Sheeter, table standing belt - 500 mm
The Dito Sama 601105 Dough Sheeter, table standing belt - 500 mm comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Dito Sama brand are renowned for their range of equipment.
Electric
Supply voltage: 230 V/1 ph/50/60 Hz
Total Watts: 0.55 kW
Key Information:
External dimensions, Width: 2380 mm
External dimensions, Depth: 980 mm
External dimensions, Height: 540 mm
Net weight (kg): 140
Brochures
(12,06 MB)
CAD Drawings
(171,34 KB)
Data Sheet
(312,67 KB)
Leaflets
(3,25 MB)
BIM/Revit
(716 KB)
The Dito Sama 601105 Dough Sheeter, table standing belt - 500 mm is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Dito Sama appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
