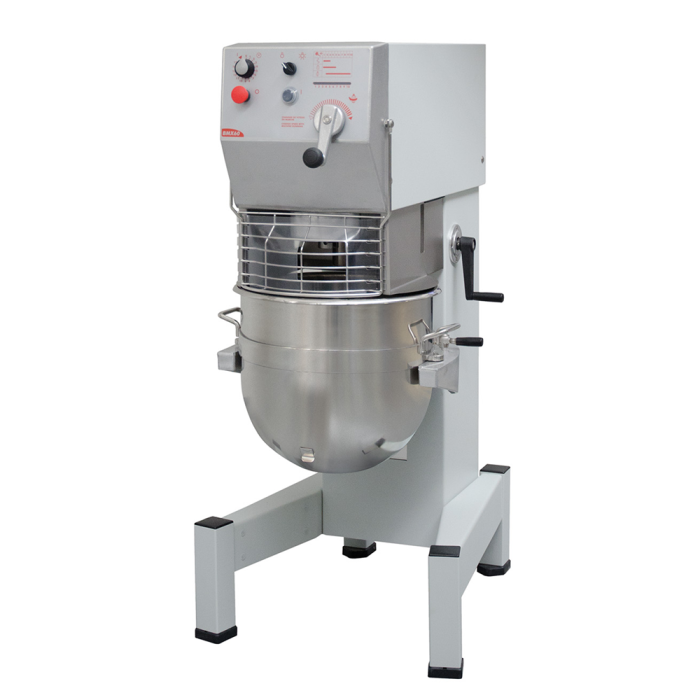

Dito Sama 600177 Planetary Mixer, 60 lt
Bowl detection device allows the mixer to switch on only when the bowl and the solid safety screen are properly installed and positioned together.
Maximum capacity (flour, with 60% of hydration) 20 kg, suitable for 400-800 meals per service.
Two level mechanical speed variator.
Waterproof control panel with timer setting knob, speed setting handle and speed display.
Manual bowl lifting and lighting system.
Safety device will automatically stop the machine if the screen is lifted.
Plastic safety screen easily removable for cleaning.
Body in non-corrosive material.
Adjustable feet to perfect stability.
Sturdy construction with mechanically welded strong metal frame.
302 AISI Stainless steel bowl - 60 lt. capacity.
Asynchronous motor with high start-up torque.
10 speeds from 20 to 180 rpm (planetary movement), to be set while machine is working, according to the tool and the mixture hardness.
Water protected planetary system (IP55 electrical controls, IP23 overall machine).
Planetary movement based on self lubricating gears, eliminating any risk of leaks.
Power: 1500 watts.
Overload protected planetary system and motor.
Description / Dito Sama 600177 Planetary Mixer, 60 lt
The Dito Sama 600177 Planetary Mixer, 60 lt comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Dito Sama brand are renowned for their range of equipment.
Electric
Supply voltage: 220-240/380-415 V/3 ph/50 Hz
Electrical power max.: 1.54 kW
Total Watts: 1.54 kW
Key Information:
External dimensions, Width: 685 mm
External dimensions, Depth: 1087 mm
External dimensions, Height: 1445 mm
Shipping weight: 330 kg
Cold water paste: 20 kg with Spiral hook
Egg whites: 100 with Whisk
Capacity:
Performance (up to): 20 kg cycle
Capacity: 60 litres
Brochures
(12,06 MB)
CAD Drawings
(82,7 KB)
Data Sheet
(403,39 KB)
Leaflets
(3,53 MB)
Pizza leaflet - TRS Classic(3,5 MB)
Pastry leaflet(3,25 MB)
Planetary Mixers(1,23 MB)
BIM/Revit
(616 KB)
The Dito Sama 600177 Planetary Mixer, 60 lt is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Dito Sama appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
