| Water Resistant Controls Splash-proof construction |
| Pouring Lip Large pouring lip for high capacity and chunky products. |
| Rolled Rim Re-inforced rolled rim design prevents damage to kettle rim, eliminates “bar rim designs“ |
| Heating Elements Welded-in heating elements, (holds vacuum better, won’t leak or loose water) |
| Easily Cleaned Kettle and all exterior surfaces are of type 304 stainless steel with an #4 finish |
| Pressure Gauge Rear mounted easy access pressure gauge and pressure relief valve to prevent tampering. Color coded easy to read pressure gauge with “green“ and “vent air zone“ |
| Jacket Rating 50 psi steam jacket rating for higher cooking temperatures |
| Safety Valve 50 psi |
| Water Level Control Solid state water level control (no sight glass gauge to break or leak) |
| Element Cover Splash proof element cover with a double gasket seal |
| Standard voltage 208-240 volts, 60 Hz, 3 phase, 3 wire. Model KET-6 and KET-12 are field rewirable to single phase |
| State of the Art Controls Accurate, consistant solid state temperature controls (mechanical thermostate not as accurate) - less than ±1°C variance (ideal for simmering). Operating temperature range from 145° - 260°F (63°C - 127°C) Control panel includes:LED indicator for heat cycle, LED indicator for low water Power ON/OFF switch, Adjustable temperature control dial |
| Legs 1 5/8“ O.D. quad-leg supports with level adjustable feet for floor bolting |
| Tilt Mechanism Tilt mechanism of roller bearings and case hardened self-locking worm and segment gear |
| 50 PSI Steam Jacket Rating (3.5 Bar Boiling Pan) for Faster Cooking Steam jacket filled with treated water, venting and/or refilling is not required |
| Shipping Weights, KW’s, Dims. (W x D X H) KEL80T 470 lbs (213 kgs) 14.7 kW, 49“ (1232mm) x 42“ (1055mm) x 44“ (1105mm)KEL100T 520 lbs (235 kgs) 14.7 kW, 51“ (1296mm) x 44“ (1033mm) x 45“ (1144mm) |
Price on request

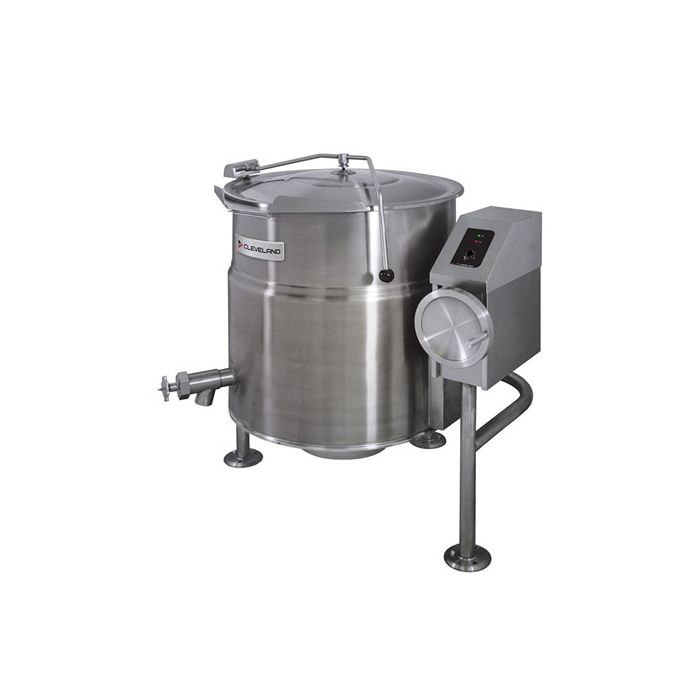

Cleveland KEL100T Electric steam kettles, quad leg, tilting
CLEVELAND, Electric Kettle, Quad-leg mounted, self-contained, tilting, 2/3 Steam Jacketed. Type 304 Stainless Steel Kettle and Supports. 50 psi Steam Jacket Rating (3.5 Bar); 50 psi Safety Valve; Permanently filled Steam Jacket; Combination Pressure/Vacuum Jacket Gauge. Splash Proof Solid State Temperature (±1° C) and Safety Control System in plug-in Module including L.E.D. indicators,in plug-in Module including L.E.D. indicators. Optional 2“ (50 mm) Tangent Draw-Off and Spring Assist Cover.
Request commercial pricing
Tell us your quantity and requirements. Our team will confirm pricing, availability and delivery options.
Need help? Call UK Sales 0117 405 7580
The Cleveland KEL100T Electric steam kettles, quad leg, tilting comes from one of the outstanding brands in US foodservice equipment. Famed for their high quality and precision engineering, the Cleveland Range brand is renowned for its range of equipment.
The Cleveland KEL100T Electric steam kettles, quad leg, tilting is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Cleveland Range appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
