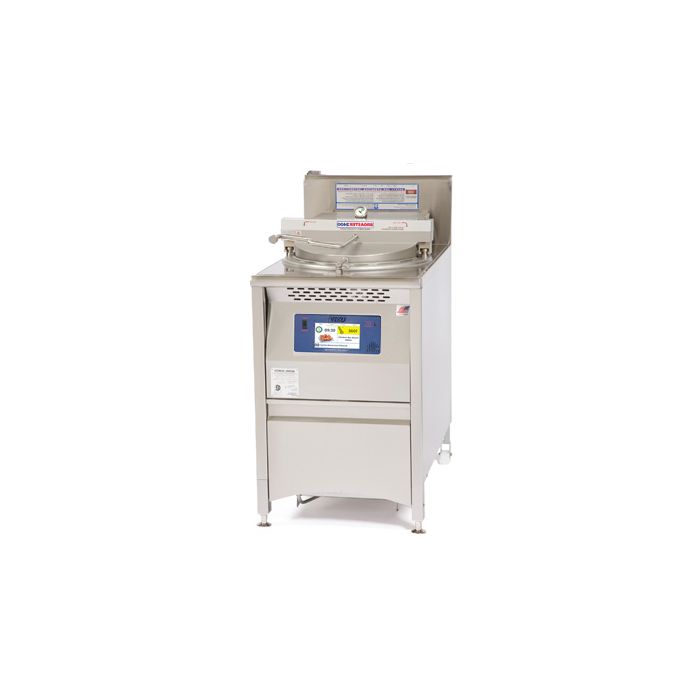

Primary construction is of stainless steel built on powdercoated steel frame with chrome-plated front leveling feet and corrosion free rear glides.
Round cooking well with 63 pound cooking oil capacity operates between 12-14 psi gauge pressure at temperatures up to 375° F.
Solid state Temp-N-Time™ controller provides 10 programmable cooking profiles with built-in, automatic cook-cycle counter. Auto-Comp feature automatically adjusts cooking time dependent on size and temperature of load.
On-board integrated filtration system consists of easily accessible stainless steel filter tray assembly. Powered by a 1/3 horse-power motor coupled to 5 gallon-per-minute rotary gear displacement oil pump.
Triple-redundant safety system is featured consisting of chrome plated relief valve, stainless steel splash guard and pressure activated cover locking mechanism with pressure regulator interlock. Also has single action combined pressure regulator valve/remote timer control, drain valve interlock and patented gas assist cover lift system. All ensure operator convenience and safety.
The Broaster electric pressure fryer is certified for use in most countries and can be ordered at different voltages to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your pressure fryer is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
BROASTER 2400 Electric Time-N-Temp Solid State Programmable Controllers |
||||||
Part # | Model # | Control | Voltage | Phase | Ship Wt. | Cubes |
85985 | 2400EDX | SS | 208 | 3 | 385 lbs. | 40 |
85944 | 2400ECANFR | SS | 208 | 3 | 385 lbs. | 40 |
85986 | 2400EDX | SS | 240 | 3 | 385 lbs. | 40 |
85891 | 2400EXP | SS | 220/380 | 3 | 385 lbs. | 40 |
85892 | 2400EXP | SS | 230/400 | 3 | 385 lbs. | 40 |
85893 | 2400EXP | SS | 240/415 | 3 | 385 lbs. | 40 |
85894 | 2400ECE | SS | 230/400 | 3 | 385 lbs. | 40 |
85954 | 2400EZAF | SS | 230/400 | 3 | 385 lbs. | 40 |
85914 | 2400E | SS | 240/480 | 3 | 385 lbs. | 40 |
BROASTER 2400 Gas Time-N-Temp Solid State Programmable Controllers |
||||||
Part # | Model # | Control | Voltage | Phase | Ship Wt. | Cubes |
85987 | 2400GHDX | SS-NAT | 120 | 1 | 425 lbs. | 40 |
85988 | 2400GHDX | SS-LP | 120 | 1 | 425 lbs. | 40 |
85879 | 2400GHXP | SS-NAT | 220 | 1 | 425 lbs. | 40 |
85877 | 2400GHXP | SS-LP | 220 | 1 | 425 lbs. | 40 |
85880 | 2400GHCE | SS-NAT | 220-240 | 1 | 425 lbs. | 40 |
85881 | 2400GHCE | SS-LP | 220-240 | 1 | 425 lbs. | 40 |
BROASTER 2400 Electric SmartTouch Touch Screen Controllers |
||||||
Part # | Model # | Control | Voltage | Phase | Ship Wt. | Cubes |
86090 | 2400EXP | ST | 220/380 | 3 | 385 lbs. | 40 |
86109 | 2400EXP | 8 | 220/400 | 3 | 385 lbs. | 40 |
86079 | 2400EXP | ST | 240/415 | 3 | 385 lbs. | 40 |
BROASTER 2400 Gas SmartTouch Touch Screen Controllers |
||||||
Part # | Model # | Control | Voltage | Phase | Ship Wt. | Cubes |
86114 | 2400GHDX | ST - LP | 120 | 1 | 425 lbs. | 40 |
